Submersible Pump Cables Flat Cables
400℉/204℃ EPDM/EPDM Flat Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for
installed down well in the oil industry.
Standards
IEEE Std. 1018
API RP 11S5
API RP 11S6

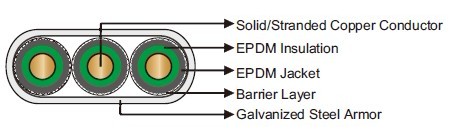

Construction
Conductor: Solid/stranded copper conductor.
Insulation: EPDM insulation.
Jacket: EPDM rubber. Each insulated conductor should be individually jacketed or three conductors laid
parallel within a common encapsulated jacket.
Barrier: Barrier tape and braid, used for fluid protection and hoop strength.
Armor: Galvanized steel.
Dimensions and Weight:
5KV
| Cable Type | Conductor Size |
Conductor O.D. |
Insulation Thickness |
Overall O.D. | Weight | |||||
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/ kft |
kg/ km |
|
| QYEE-204-5kV-3G10S | - | 10 | 0.14 | 3.556 | 0.09 | 2.3 | 1.68×0.59 | 42.6×14.9 | 865 | 1287 |
| QYEE-204-5kV-3G6 | 6 | 13.3 | 0.162 | 4.115 | 0.09 | 2.3 | 1.77×0.62 | 44.9×15.6 | 975 | 1451 |
| QYEE-204-5kV-3G16S | - | 16 | 0.178 | 4.521 | 0.09 | 2.3 | 1.83×0.64 | 46.6×16.2 | 1061 | 1579 |
| QYEE-204-5kV-3G4 | 4 | 21.1 | 0.204 | 5.182 | 0.09 | 2.3 | 1.94×0.67 | 49.3×17.1 | 1212 | 1804 |
| QYEE-204-5kV-3G25S | - | 25 | 0.222 | 5.639 | 0.09 | 2.3 | 2.02×0.70 | 51.2×17.7 | 1325 | 1971 |
| QYEE-204-5kV-3G2 | 2 | 33.6 | 0.258 | 6.553 | 0.09 | 2.3 | 2.17×0.75 | 55.0×19.0 | 1570 | 2336 |
| QYEE-204-5kV-3G1 | 1 | 42.4 | 0.289 | 7.341 | 0.09 | 2.3 | 2.29×0.79 | 58.3×20.1 | 1802 | 2682 |
| QYEE-204-5kV-3G1/0 | 1/0 | 53.5 | 0.368 | 9.347 | 0.09 | 2.3 | 2.62×0.90 | 66.6×22.9 | 2483 | 3696 |
| QYEE-204-5kV-3G2/0 | 2/0 | 67.4 | 0.414 | 10.516 | 0.09 | 2.3 | 2.81×0.96 | 71.4×24.5 | 2939 | 4374 |
Other conductor size can be offered upon request.
