PVC Insulated & PVC Sheathed Installation Cables to DIN VDE 0815/DIN 57815
J-YY…2X0.6 Bd
Application
The installation cables are used for telephone and signal transmission for permanent surface or concealed
installation in dry and damp rooms, on or under plaster, and on external walls.
Standards
DIN VDE 0815/DIN 57815

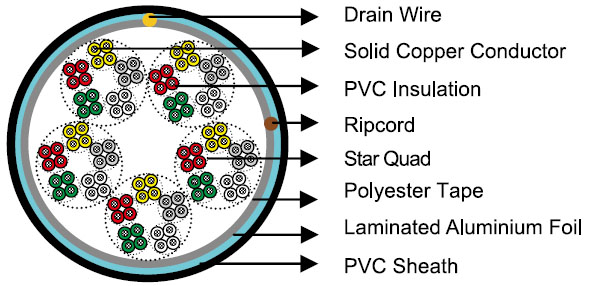

Construction
Conductors
Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 Class 1
Insulation
PVC YI1 type to DIN VDE 0207-2
Cabling Element
Star Quads
Cable Core Assembly
Each 4 wires are stranded into a star quad, the quads are stranded to units and the units are stranded to form
the core
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to
sheathing
Screen
Laminated aluminium foil is fully enclosing the core with an overlap
Sheath
PVC YM1 type to DIN VDE 0207 part 5
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain Wire
Tinned drain wire applied longitudinally to provide continuity of the screen
Type Codes
J Installation Cable Y Polyvinyl Chloride (PVC) Bd Unit stranding.
Electrical Properties
| Nominal Conductor Diameter | mm | 0.6 |
| VDE CODE | J-YY | |
| Conductor Size | mm2 | 0.283 |
| Maximum Conductor Resistance @20°C | Ω/km | 63 |
| Minimum Insulation Resistance @500V DC @20°C | MΩ.km | 100 |
| Maximum Mutual Capacitance @0.8KHz | nF/km | 100 |
| Maximum Capacitance Unbalance @0.8KHz | ||
| K1 max | pF/100m | 300 |
| K9-K12 max | pF/100m | 100 |
| Maximum Loop Resistance @20°C | Ω/km | 130 |
| Maximum Average Attenuation @0.8KHz | dB/km | 1.7 |
| Maximum Working Voltage Peak Value | V | 300 |
| Nominal Insulation Thickness | mm | 0.2 |
| Nominal Insulated Conductor Diameter | mm | 1.0 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Colour Code
Quads
The single core is identified by black ring markings:
| Side Circuit 1 | a-wire | without marking |
| b-wire | 1 mark distance 17mm | |
| Side Circuit 2 | a-wire | 2 marks distance 34mm |
| b-wire | 2 marks distance 17mm |
Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:
| Quad 1 Red | Quad 2 Green | |
| Quad 3 Grey | Quad 4 Yellow | Quad 5 White |
The tracer units are coded with a red helix, all other units by a white binder
Dimensions And Weight
VDE CODE: J-YY…x2x 0.6 Bd
| Cable Code | Number of Pairs |
Nominal Insulation
Thickness mm |
Nominal Sheath
Thickness mm |
Nominal Overall
Diameter mm |
Nominal
Weight kg/km |
| 0.6mm Conductor, 1.0mm Insulted Wires | |||||
| TP815J-YY-Bd-2P06 | 2 | 0.2 | 1.0 | 4.5 | 34 |
| TP815J-YY-Bd-4P06 | 4 | 0.2 | 1.0 | 6.5 | 59 |
| TP815J-YY-Bd-6P06 | 6 | 0.2 | 1.0 | 7.0 | 74 |
| TP815J-YY-Bd-10P06 | 10 | 0.2 | 1.0 | 8.5 | 111 |
| TP815J-YY-Bd-16P06 | 16 | 0.2 | 1.0 | 10.0 | 160 |
| TP815J-YY-Bd-20P06 | 20 | 0.2 | 1.0 | 11.0 | 200 |
| TP815J-YY-Bd-24P06 | 24 | 0.2 | 1.0 | 11.5 | 224 |
| TP815J-YY-Bd-30P06 | 30 | 0.2 | 1.2 | 13.0 | 284 |
| TP815J-YY-Bd-40P06 | 40 | 0.2 | 1.2 | 15.0 | 364 |
| TP815J-YY-Bd-50P06 | 50 | 0.2 | 1.2 | 16.5 | 451 |
| TP815J-YY-Bd-60P06 | 60 | 0.2 | 1.4 | 17.5 | 529 |
| TP815J-YY-Bd-80P06 | 80 | 0.2 | 1.4 | 20.3 | 700 |
| TP815J-YY-Bd-100P06 | 100 | 0.2 | 1.4 | 22.3 | 850 |
