		Telephone Cables
Outdoor Telephone Cables Indoor Telephone Cables Indoor/Outdoor Telephone Cables Special Telephone Cables Ordering Information

 Solid PE Insulated & AP Sheathed Air Core Cables to ICEA S-85-625

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)

Colour Code

Standard colour code is per IEC 60708 given in Colour Code Chart

Dimensions And Weight

Solid PE Insulated & LAP Sheathed Air Core Cable to IEC 6070

Cable Code	Number of Pairs	Nominal Sheath Thickness mm/inch	Nominal Overall Diameter mm/inch	Nominal Weight kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP22-2Y(L)2Y-3P04	3	1.5/0.059	8.0/0.32	55/37
TP22-2Y(L)2Y-5P04	5	1.5/0.059	8.5/0.33	60/40
TP22-2Y(L)2Y-6P04	6	1.5/0.059	9.0/0.35	65/44
TP22-2Y(L)2Y-10P04	10	1.5/0.059	9.5/0.37	80/54
TP22-2Y(L)2Y-12P04	12	1.5/0.059	10.0/0.39	90/60
TP22-2Y(L)2Y-15P04	15	1.5/0.059	10.5/0.41	100/67
TP22-2Y(L)2Y-20P04	20	1.5/0.059	11.0/0.43	120/81
TP22-2Y(L)2Y-25P04	25	1.5/0.059	12.0/0.47	140/94
TP22-2Y(L)2Y-30P04	30	1.5/0.059	12.5/0.49	155/104
TP22-2Y(L)2Y-40P04	40	1.5/0.059	13.5/0.53	190/128
TP22-2Y(L)2Y-50P04	50	1.5/0.059	14.5/0.57	220/148
TP22-2Y(L)2Y-75P04	75	1.5/0.059	16.5/0.65	300/202
TP22-2Y(L)2Y-100P04	100	1.5/0.059	18.0/0.71	380/255
TP22-2Y(L)2Y-150P04	150	1.5/0.059	21.0/0.83	540/363
TP22-2Y(L)2Y-200P04	200	1.5/0.059	24.0/0.94	690/464
TP22-2Y(L)2Y-300P04	300	1.5/0.059	30.5/1.20	1000/672
TP22-2Y(L)2Y-400P04	400	1.8/0.071	31.5/1.24	1300/874
TP22-2Y(L)2Y-600P04	600	2.0/0.079	37.5/1.48	1900/1277
TP22-2Y(L)2Y-800P04	800	2.3/0.091	43.0/1.69	2800/1882
TP22-2Y(L)2Y-900P04	900	2.3/0.091	46.0/1.81	2961/1990
TP22-2Y(L)2Y-1000P04	1000	2.5/0.098	48.0/1.89	3264/2193
TP22-2Y(L)2Y-1200P04	1200	2.8/0.110	52.0/2.05	3873/2603
TP22-2Y(L)2Y-1500P04	1500	2.8/0.110	58.0/2.28	4819/3238
TP22-2Y(L)2Y-1800P04	1800	3.2/0.126	63.0/2.48	5777/3882
TP22-2Y(L)2Y-2100P04	2100	3.2/0.126	68.0/2.68	6731/4523
TP22-2Y(L)2Y-2400P04	2400	3.5/0.138	72.0/2.83	7645/5137
TP22-2Y(L)2Y-2700P04	2700	3.5/0.138	76.0/2.99	8556/5749
TP22-2Y(L)2Y-3000P04	3000	3.5/0.138	80.0/3.15	9466/6361
0.5mm Conductor, 0.9mm Insulated Wire
TP22-2Y(L)2Y-6P05	6	1.5/0.059	9.40/0.37	82/55
TP22-2Y(L)2Y-12P05	12	1.5/0.059	10.92/0.43	119/80
TP22-2Y(L)2Y-25P05	25	1.5/0.059	13.72/0.54	201/135
TP22-2Y(L)2Y-50P05	50	1.5/0.059	17.02/0.67	335/225
TP22-2Y(L)2Y-100P05	100	1.5/0.059	22.35/0.88	595/400
TP22-2Y(L)2Y-200P05	200	1.5/0.059	30.48/1.20	1108/745
TP22-2Y(L)2Y-300P05	300	1.5/0.059	35.56/1.40	1622/1090
TP22-2Y(L)2Y-400P05	400	1.5/0.059	40.64/1.60	2128/1430
TP22-2Y(L)2Y-600P05	600	1.5/0.059	48.26/1.90	3154/2120
TP22-2Y(L)2Y-900P05	900	1.5/0.059	58.42/2.30	4627/3110
0.63mm Conductor, 1.15mm Insulated Wire
TP22-2Y(L)2Y-6P063	6	1.5/0.059	10.16/0.40	104/70
TP22-2Y(L)2Y-12P063	12	1.5/0.059	12.45/0.49	164/110
TP22-2Y(L)2Y-25P063	25	1.5/0.059	16.00/0.63	283/190
TP22-2Y(L)2Y-50P063	50	1.5/0.059	22.86/0.90	484/325
TP22-2Y(L)2Y-100P063	100	1.5/0.059	27.94/1.10	885/595
TP22-2Y(L)2Y-200P063	200	1.5/0.059	35.56/1.40	1696/1140
0.9mm Conductor, 1.5mm Insulated Wire
TP22-2Y(L)2Y-6P09	6	1.5/0.059	12.45/0.49	164/110
TP22-2Y(L)2Y-12P09	12	1.5/0.059	15.75/0.62	268/180
TP22-2Y(L)2Y-25P09	25	1.5/0.059	20.07/0.79	476/320
TP22-2Y(L)2Y-50P09	50	1.5/0.059	27.94/1.10	878/590

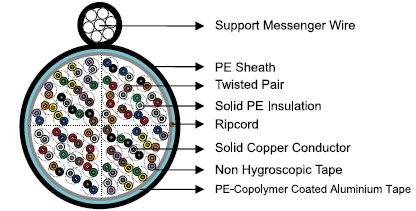

Fig 8 Solid PE Insulated & LAP Sheathed Air Core Cable to ICEA S-85-625 (formerly RUS (REA) PE-38)

Cable Code	Number of Pairs	Support Messenger Wire Diameter mm/inch	Nominal Sheath Thickness mm/inch	Nominal Overall Dimension d x D x H mm/inch	Nominal Weight kg/km / lbs/kft
0.4mm Conductor, 0.7mm Insulated Wire
TP38-2Y(L)2Y-3P04-SS	3	7/2.03 / 7/0.08	1.5/0.059	9.1X8.0X20.0 / 0.36X0.315X0.787	245/165
TP38-2Y(L)2Y-5P04-SS	5	7/2.03 / 7/0.08	1.5/0.059	9.1X8.5X20.5 / 0.36X0.335X0.807	250/168
TP38-2Y(L)2Y-6P04-SS	6	7/2.03 / 7/0.08	1.5/0.059	9.1X9.0X21.0 / 0.36X0.354X0.827	260/175
TP38-2Y(L)2Y-10P04-SS	10	7/2.03 / 7/0.08	1.5/0.059	9.1X9.5X21.5 / 0.36X0.374X0.846	270/181
TP38-2Y(L)2Y-12P04-SS	12	7/2.03 / 7/0.08	1.5/0.059	9.1X10.0X22.0 / 0.36X0.394X0.866	280/188
TP38-2Y(L)2Y-15P04-SS	15	7/2.03 / 7/0.08	1.5/0.059	9.1X10.5X22.5 / 0.36X0.413X0.886	290/195
TP38-2Y(L)2Y-20P04-SS	20	7/2.03 / 7/0.08	1.5/0.059	9.1X11.0X23.5 / 0.36X0.433X0.925	310/208
TP38-2Y(L)2Y-25P04-SS	25	7/2.03 / 7/0.08	1.5/0.059	9.1X12.0X24.0 / 0.36X0.472X0.945	330/222
TP38-2Y(L)2Y-30P04-SS	30	7/2.03 / 7/0.08	1.5/0.059	9.1X12.5X24.5 / 0.36X0.492X0.965	350/235
TP38-2Y(L)2Y-40P04-SS	40	7/2.03 / 7/0.08	1.5/0.059	9.1X13.5X25.5 / 0.36X0.531X1.000	390/262
TP38-2Y(L)2Y-50P04-SS	50	7/2.03 / 7/0.08	1.5/0.059	9.1X14.5X26.5 / 0.36X0.571X1.040	410/276
TP38-2Y(L)2Y-75P04-SS	75	7/2.03 / 7/0.08	1.5/0.059	9.1X16.5X28.5 / 0.36X0.650X1.120	490/329
TP38-2Y(L)2Y-100P04-SS	100	7/2.03 / 7/0.08	1.5/0.059	9.1X18.0X30.0 / 0.36X0.709X1.180	570/383
TP38-2Y(L)2Y-150P04-SS	150	7/2.03 / 7/0.08	1.5/0.059	9.1X21.0X33.0 / 0.36X0.827X1.300	730/491
TP38-2Y(L)2Y-200P04-SS	200	7/2.03 / 7/0.08	1.5/0.059	9.1X23.5X36.0 / 0.36X0.925X1.420	880/591
TP38-2Y(L)2Y-300P04-SS	300	7/2.03 / 7/0.08	1.5/0.059	9.1X27.5X39.5 / 0.36X1.080X1.560	1220/820
TP38-2Y(L)2Y-400P04-SS	400	7/2.03 / 7/0.08	1.5/0.059	9.7X31.5X44.0 / 0.382X1.240X1.73	1490/1001
0.5mm Conductor, 0.9mm Insulated Wire
TP38-2Y(L)2Y-6P05-SS	6	7/2.03 / 7/0.08	1.5/0.059	9.1X9.4X22.0 / 0.36X0.37X0.866	305/205
TP38-2Y(L)2Y-12P05-SS	12	7/2.03 / 7/0.08	1.5/0.059	9.1X10.92X23.5 / 0.36X0.43X0.925	342/230
TP38-2Y(L)2Y-25P05-SS	25	7/2.03 / 7/0.08	1.5/0.059	9.1X13.72X26.0 / 0.36X0.54X1.024	424/285
TP38-2Y(L)2Y-50P05-SS	50	7/2.03 / 7/0.08	1.5/0.059	9.1X17.02X29.0 / 0.36X0.67X1.14	558/375
TP38-2Y(L)2Y-100P05-SS	100	7/2.03 / 7/0.08	1.5/0.059	9.1X22.86X34.5 / 0.36X0.90X1.36	833/560
0.63mm Conductor, 1.15mm Insulated Wire
TP38-2Y(L)2Y-6P063-SS	6	7/2.03 / 7/0.08	1.5/0.059	9.1X10.15X23.0 / 0.36X0.40X0.906	327/220
TP38-2Y(L)2Y-12P063-SS	12	7/2.03 / 7/0.08	1.5/0.059	9.1X12.45X25.0 / 0.36X0.49X0.984	387/260
TP38-2Y(L)2Y-25P063-SS	25	7/2.03 / 7/0.08	1.5/0.059	9.1X15.49X28.0 / 0.36X0.61X1.10	498/335
TP38-2Y(L)2Y-50P063-SS	50	7/2.03 / 7/0.08	1.5/0.059	9.1X20.57X32.5 / 0.36X0.81X1.28	722/485
0.9mm Conductor, 1.5mm Insulated Wire
TP38-2Y(L)2Y-6P09-SS	6	7/2.03 / 7/0.08	1.5/0.059	9.1X12.45X25.0 / 0.36X0.49X0.984	387/260
TP38-2Y(L)2Y-12P09-SS	12	7/2.03 / 7/0.08	1.5/0.059	9.1X15.75X28.0 / 0.36X0.62X1.10	491/330
TP38-2Y(L)2Y-25P09-SS	25	7/2.03 / 7/0.08	1.5/0.059	9.1X20.57X33.0 / 0.36X0.81X1.30	714/480
