PE Insulated Air Core/Jelly Filled Star Quad Railway Signalling Cables to VDE 0816/DIN 57816
Application
The cables are designed to give good protection to the core against inductive interference. The cables are used
for outdoor signaling equipment.
Standards
VDE 0816/DIN 57816

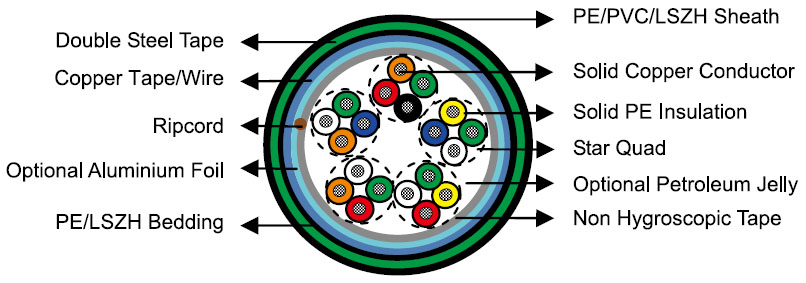

Construction
Conductors
Solid annealed bare copper 0.9/1.4mm as per ASTM B-3/IEC 60228 Class 1
Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708
Cabling Element
Four insulated conductors are twisted together to form a quad
Cable Core Assembly
The cores are cabled together in concentric layers to form the cable core. Units are identified by colour coded
binders
Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap
Electrostatic Screen
Copper tape or copper wire braid with wire diameter of 0.12mm
Bedding
PE or LSZH
Electrostatic Armour
Two steel tapes of 0.5mm or 0.8mm are helically applied with gap. The outer tape will cover the gap left by the
inner one
Sheath
PE/PVC or LSZH
Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Electrical Properties
| Nominal Conductor Diameter | mm | 0.9 | 1.4 |
| Conductor Size | mm2 | 0.636 | 1.539 |
| Maximum Conductor Resistance @20°C | Ω/km | 28 | 12.1 |
| Minimum Insulation Resistance @500V DC | MΩ.km | 35000 | 5000 |
| Maximum Resistance Unbalance | % | 2.5 | 2.5 |
| Maximum Mutual Capacitance @0.8KHz | nF/km | 45 | 50 |
| Maximum Capacitance Unbalance @1KHz pair-to-pair | pF/500m | 250 | 250 |
| Maximum Capacitance Unbalance @1KHz pair-to-ground | pF/500m | 1200 | 1200 |
| Maximum Average Attenuation @1KHz | dB/km | 0.7 | 0.46 |
| Maximum Average Attenuation @10KHz | dB/km | 1.6 | 0.85 |
| Maximum Average Attenuation @30KHz | dB/km | 2.1 |
1.3 |
| Dielectric Strength Conductor to Conductor 3secs | V DC | 3000 | 3000 |
| Conductor to Screen 3secs | V DC | 3500 | 3500 |
| Nominal Insulation Thickness | mm | 0.45 | 0.65 |
| Nominal Insulated Conductor Diameter | mm | 1.8 | 2.7 |
Reduction Factor
| Type group | Frequency Hz | Cable reduction factor(planning values)at field strength | ||
| 70V/km | 100V/km | 350V/km | ||
| 1,5 | 1623 |
0.70 | 0.60 | 0.92 |
| 2,3,6,7 | 0.55 | 0.45 | 0.80 | |
| 4,8 | 0.30 | 0.25 | 0.70 | |
| 1,5 | 50 | 0.45 | 0.38 | 0.52 |
| 2,6 | 0.21 | 0.17 | 0.29 | |
| 3,7 | 0.42 | 0.37 | 0.30 | |
| 4,8 | 0.17 | 0.14 | 0.12 | |
Reference length is 300m. Conversion factor for different lengths L (at least 200m): L/300
Type Codes
| AJ- | -Outdoor cable with protection against inductive influences |
| 2Y | - Solid PE |
| Y | - PVC |
| H | - LSZH |
| (St) | - Static shield of plastic-backed aluminum Tape for indoor cables |
| D | - Shield of copper wire whipping. |
| S | - Railway signaling cable |
| Lg | - Stranded in layers |
| (…Cu) | - Total cross section of copper shield in mm sq |
| (fK) | - Longitdinally applied copper tape, supplement to (St) |
| 2B… | - two layers of steel tape, thickness of steel tape in mm |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperaturerange during installation (mobile state): -20°C – +50°C
Minimumbending radius: 15 x Overall Diameter
Colour Code
Coloured rings on the insulation
The tracer quad in each layer has a red helix
Dimensions And Weight
VDE CODE:
Copper tape screen & steel tape thickness of 0.5/0.8mm
AJ-2Y(St)YbY…x4x0.9/1.4 S Lg (fK) (2B 0.5) AJ-2Y(St)YbY…x4x0.9/1.4 S Lg (fK) (2B 0.8)
Copper wire screen (wire diameter of 1.2mm) & steel tape thickness of 0.8mm
AJ-2YDYbY…x4x0.9/1.4 S Lg (…Cu/2B 0.5) AJ-2YDYbY…x4x0.9/1.4 S Lg (…Cu/2B 0.8)
| Cable Code | Number
of Quads |
Nominal Bedding/ Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal
Weight kg/km |
| Type 1: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Tape Screened, RF 0.6 Steel tape thickness 0.5mm | ||||
| TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-3Q09 | 3 | 1.7/1.8 | 22.0 | 810 |
| TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-5Q09 | 5 | 1.7/1.8 | 25.5 | 1035 |
| TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-7Q09 | 7 | 1.7/1.8 | 26.5 | 1150 |
| TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-10Q09 | 10 | 1.8/2.0 | 32.5 | 1550 |
| TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-14Q09 | 14 | 1.8/2.0 | 35.5 | 1870 |
| Type 2: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Wire Screened, RF 0.45 Steel tape thickness 0.5mm | ||||
| TP816AJ-2YDYbY-S Lg (23/2B0.5)-7Q09 | 7 | 1.7/1.8 | 28.5 | 1410 |
| TP816AJ-2YDYbY-S Lg (25/2B0.5)-10Q09 | 10 | 1.8/2.0 | 33.0 | 1745 |
| TP816AJ-2YDYbY-S Lg (25/2B0.5)-14Q09 | 14 | 1.8/2.0 | 36.6 | 2060 |
| Type 3: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Tape Screened, RF 0.45 Steel tape thickness 0.8mm | ||||
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-20Q09 | 20 | 1.8/2.0 | 40.0 | 2610 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-30Q09 | 30 | 2.0/2.2 | 46.5 | 3425 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-40Q09 | 40 | 2.0/2.2 | 50.5 | 4015 |
| Type 4: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Wire Screened, RF 0.25 Steel tape thickness 0.8mm | ||||
| TP816AJ-2YDYbY-S Lg (29/2B0.8)-20Q09 | 20 | 1.8/2.0 | 40.5 | 2840 |
| TP816AJ-2YDYbY-S Lg (33/2B0.8)-30Q09 | 30 | 2.0/2.2 | 47.5 | 3655 |
| TP816AJ-2YDYbY-S Lg (33/2B0.8)-40Q09 | 40 | 2.0/2.2 | 51.5 | 4230 |
| Type 5: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Tape Screened, RF 0.6 Steel tape thickness 0.5mm | ||||
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-3Q14 | 3 | 1.7/1.8 | 26.5 | 1140 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-5Q14 | 5 | 1.7/1.8 | 29.5 | 1430 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-7Q14 | 7 | 1.8/2.0 | 33.5 | 1790 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-10Q14 | 10 | 1.8/2.0 | 39.0 | 2330 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-14Q14 | 14 | 1.8/2.0 | 42.5 | 2805 |
| Type 6: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Wire Screened, RF 0.45 Steel tape thickness 0.5mm | ||||
| TP816AJ-2YDYbY-S Lg (25/2B0.5)-25Q14 | 25 | 1.8/2.0 | 35.0 | 2050 |
| Type 7: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Tape Screened, RF 0.45 Steel tape thickness 0.8mm | ||||
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-20Q14 | 20 | 2.0/2.2 | 49.0 | 4085 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-30Q14 | 30 | 2.4/2.6 | 58.5 | 5585 |
| TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-40Q14 | 40 | 2.4/2.6 | 64.0 | 6720 |
| Type 8: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Wire Screened, RF 0.25 Steel tape thickness 0.8mm | ||||
| TP816AJ-2YDYbY-S Lg (29/2B0.5)-10Q14 | 10 | 1.8/2.0 | 41.0 | 2950 |
| TP816AJ-2YDYbY-S Lg (33/2B0.5)-14Q14 | 14 | 2.0/2.2 | 46.0 | 3615 |
| TP816AJ-2YDYbY-S Lg (33/2B0.5)-20Q14 | 20 | 2.0/2.2 | 50.0 | 4310 |
| TP816AJ-2YDYbY-S Lg (38/2B0.5)-30Q14 | 30 | 2.4/2.6 | 59.5 | 5850 |
| TP816AJ-2YDYbY-S Lg (43/2B0.5)-40Q14 | 40 | 2.4/2.6 | 65.0 | 7005 |
