Thermocouple Cables

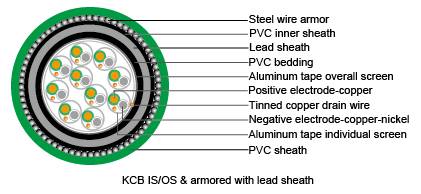

Multipair Individual/overall Screen with Armor and Lead Sheath
Applications
These cable can be used in cable tray or conduit to connect different types of thermocouple in industrial process
controls, refineries, oil and gas plant. Excellent protection against corrosion, humidity and poor vibration
resistance.
Specification
Conductor: Solid
Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
Insulation: PVC, PE, XLPE or LSZH thermoplastic material
Individual screen: 24 μm aluminium / PETP tape over solid tinned copper drain wire, 0.6 mm
Wrapping: At least 1 layer of plastic tape
Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5 mm²
Bedding: PE, PVC or LSZH thermoplastic material
Lead sheath: Lead alloy
Inner sheath: PVC or LSZH thermoplastic material
Armor: Galvanized round steel wires
Outer sheath: PVC or LSZH thermoplastic material
Color code: According to IEC 60584-3
Flame retardancy: IEC 60332-1
Flame propagation: IEC 60332 cat. C
Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.
0.5 mm²
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
| 2 | 0.4 | 0.9 | 1.1 | 0.8 | 0.9 | 1.4 | 17.3 | 892 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.4 | 18.9 | 1078 |
| 6 | 0.4 | 1.2 | 1.1 | 0.8 | 0.9 | 1.5 | 21.2 | 1309 |
| 8 | 0.4 | 1.2 | 1.2 | 0.8 | 0.9 | 1.5 | 22.3 | 1491 |
| 10 | 0.4 | 1.2 | 1.2 | 0.8 | 1.25 | 1.6 | 25.4 | 1912 |
| 12 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 25.8 | 2000 |
| 16 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 20 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 29.5 | 2610 |
| 24 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.8 | 32.6 | 3087 |
0.8 mm²
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
| 2 | 0.4 | 0.9 | 1.1 | 0.8 | 0.9 | 1.4 | 18.0 | 970 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 20.2 | 1204 |
| 6 | 0.4 | 1.2 | 1.1 | 0.8 | 0.9 | 1.5 | 22.3 | 1451 |
| 8 | 0.4 | 1.2 | 1.2 | 0.8 | 0.9 | 1.6 | 24.6 | 1848 |
| 10 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 26.9 | 2137 |
| 12 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 16 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 30.0 | 2690 |
| 20 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.8 | 32.1 | 3092 |
| 24 | 0.4 | 1.5 | 1.4 | 1.0 | 1.25 | 1.8 | 35.2 | 3581 |
1.0 mm²
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
| 2 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.4 | 18.4 | 1011 |
| 4 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 20.2 | 1204 |
| 6 | 0.4 | 1.2 | 1.2 | 0.9 | 0.9 | 1.6 | 23.6 | 1691 |
| 8 | 0.4 | 1.2 | 1.2 | 0.9 | 1.25 | 1.6 | 24.6 | 1848 |
| 10 | 0.4 | 1.2 | 1.3 | 0.9 | 1.25 | 1.7 | 27.5 | 2244 |
| 12 | 0.4 | 1.3 | 1.3 | 0.9 | 1.25 | 1.7 | 28.2 | 2383 |
| 16 | 0.4 | 1.3 | 1.4 | 1.0 | 1.25 | 1.7 | 30.2 | 2781 |
| 20 | 0.4 | 1.5 | 1.4 | 1.1 | 1.25 | 1.8 | 32.5 | 3154 |
| 24 | 0.4 | 1.5 | 1.5 | 1.2 | 1.6 | 1.9 | 36.5 | 3982 |
1.3 mm²
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
| 2 | 0.4 | 1.1 | 1.1 | 0.8 | 0.9 | 1.5 | 19.8 | 1140 |
| 4 | 0.4 | 1.2 | 1.2 | 0.9 | 0.9 | 1.5 | 22.5 | 1588 |
| 6 | 0.4 | 1.2 | 1.2 | 1.0 | 1.25 | 1.6 | 25.1 | 1915 |
| 8 | 0.4 | 1.2 | 1.3 | 1.1 | 1.25 | 1.6 | 26.4 | 2190 |
| 10 | 0.4 | 1.3 | 1.3 | 1.1 | 1.25 | 1.7 | 29.7 | 2606 |
| 12 | 0.4 | 1.3 | 1.4 | 1.1 | 1.25 | 1.7 | 30.5 | 2843 |
| 16 | 0.4 | 1.3 | 1.4 | 1.2 | 1.25 | 1.8 | 32.5 | 3235 |
| 20 | 0.4 | 1.5 | 1.5 | 1.2 | 1.25 | 1.9 | 35.2 | 3797 |
| 24 | 0.4 | 1.5 | 1.5 | 1.2 | 1.6 | 1.9 | 39.5 | 4653 |
1.5 mm²
| No. of Pairs | Insulation Thickness (mm) | Bedding Thickness (mm) | Lead Sheath Thickness (mm) | Inner Sheath Thickness (mm) | Diameter of Armor Wire (mm) | Outer Sheath Thickness (mm) | Nominal O.D. (mm) | Weight* (kg/km) |
| 2 | 0.5 | 1.1 | 1.2 | 0.9 | 0.9 | 1.5 | 21.1 | 1303 |
| 4 | 0.5 | 1.2 | 1.2 | 1.0 | 0.9 | 1.5 | 23.7 | 1741 |
| 6 | 0.5 | 1.2 | 1.3 | 1.1 | 1.25 | 1.6 | 26.9 | 2193 |
| 8 | 0.5 | 1.3 | 1.3 | 1.1 | 1.25 | 1.7 | 28.7 | 2481 |
| 10 | 0.5 | 1.3 | 1.4 | 1.2 | 1.25 | 1.7 | 31.9 | 2995 |
| 12 | 0.5 | 1.3 | 1.4 | 1.2 | 1.25 | 1.7 | 32.6 | 3164 |
| 16 | 0.5 | 1.5 | 1.5 | 1.3 | 1.25 | 1.9 | 36.3 | 3863 |
| 20 | 0.5 | 1.5 | 1.6 | 1.3 | 1.6 | 1.9 | 39.2 | 4686 |
| 24 | 0.5 | 1.7 | 1.6 | 1.3 | 1.6 | 2.0 | 43.6 | 5471 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
