Thermocouple Cables

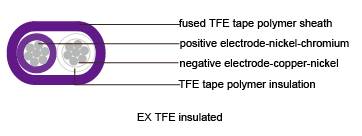

Flat Single Pair TFE Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: TFE Tape Polymer
Outer sheath: Fused TFE Tape Polymer
Construction: Flat
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.3 x 1.9 | 10.0 |
| 24 (7/0.2) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.3 x 2.2 | 10.3 |
| 20 (0.81) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.5 x 2.5 | 16.7 |
| 20 (7/0.32) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.5 x 2.7 | 17.1 |
E Type
AWG(mm) |
Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.3 x 1.9 | 10.0 |
| 24 (7/0.2) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.3 x 2.2 | 10.3 |
| 20 (0.81) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.5 x 2.5 | 16.7 |
| 20 (7/0.32) | TFE Tape Polymer | Fused TFE Tape Polymer | 260 | 1.5 x 2.7 | 17.1 |
