Thermocouple Cables

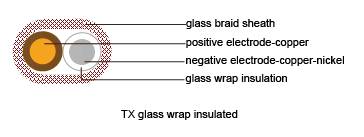

Flat Single Pair Glass Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: Glass wrap or glass braid
Outer sheath: Glass braid or stainless steel braid
Construction: Flat
Color code: According to IEC 60584-3
K Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 36 (0.13) | Glass Wrap | Glass Braid | 482 | 0.8 x 1.1 | 3.4 |
| 30 (0.25) | Glass Wrap | Glass Braid | 482 | 0.9 x 1.3 | 6.7 |
| 28 (0.32) | Glass Wrap | Glass Braid | 482 | 1.0 x 1.4 | 7.3 |
| 26 (0.41) | Glass Braid | Glass Braid | 482 | 1.1 x 1.9 | 8.4 |
| 24 (0.51) | Glass Braid | Glass Braid | 482 | 1.3 x 2.0 | 10.0 |
| 24 (7/0.2) | Glass Braid | Glass Braid | 482 | 1.3 x 2.2 | 10.3 |
| 20 (0.81) | Glass Braid | Glass Braid | 482 | 1.5 x 2.1 | 13.4 |
| 20 (7/0.32) | Glass Braid | Glass Braid | 482 | 1.5 x 2.5 | 13.8 |
K Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | Glass Braid | Stainless Steel Braid | 482 | 2.0 x 2.8 | 16.7 |
| 24 (7/0.2) | Glass Braid | Stainless Steel Braid | 482 | 2.2 x 3.0 | 18.3 |
| 20 (0.81) | Glass Braid | Stainless Steel Braid | 482 | 2.3 x 3.0 | 20.0 |
| 20 (7/0.32) | Glass Braid | Stainless Steel Braid | 482 | 2.3 x 3.2 | 23.4 |
J Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 36 (0.13) | Glass Wrap | Glass Braid | 320 | 0.8 x 1.1 | 3.4 |
| 30 (0.25) | Glass Wrap | Glass Braid | 320 | 0.9 x 1.3 | 6.7 |
| 28 (0.32) | Glass Wrap | Glass Braid | 370 | 1.0 x 1.4 | 7.3 |
| 26 (0.41) | Glass Braid | Glass Braid | 370 | 1.1 x 1.9 | 8.4 |
| 24 (0.51) | Glass Braid | Glass Braid | 370 | 1.3 x 2.0 | 10.0 |
| 24 (7/0.2) | Glass Braid | Glass Braid | 370 | 1.3 x 2.2 | 10.3 |
| 20 (0.81) | Glass Braid | Glass Braid | 480 | 1.5 x 2.1 | 13.4 |
| 20 (7/0.32) | Glass Braid | Glass Braid | 480 | 1.5 x 2.5 | 13.8 |
T Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 30 (0.25) | Glass Wrap | Glass Braid | 150 | 0.9 x 1.3 | 6.7 |
| 28 (0.32) | Glass Wrap | Glass Braid | 200 | 1.0 x 1.4 | 7.3 |
| 26 (0.41) | Glass Wrap | Glass Braid | 200 | 1.1 x 1.9 | 8.4 |
| 24 (0.51) | Glass Braid | Glass Braid | 200 | 1.3 x 2.0 | 10.0 |
| 24 (7/0.2) | Glass Braid | Glass Braid | 200 | 1.3 x 2.2 | 10.3 |
| 20 (0.81) | Glass Braid | Glass Braid | 260 | 1.5 x 2.4 | 13.4 |
| 20 (7/0.32) | Glass Braid | Glass Braid | 260 | 1.5 x 2.5 | 13.8 |
N Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 30 (0.25) | Glass Braid | Glass Braid | 482 | 0.9 x 1.3 | 3.4 |
| 24 (0.51) | Glass Braid | Glass Braid | 482 | 1.3 x 2.0 | 5.1 |
| 20 (0.81) | Glass Braid | Glass Braid | 482 | 1.5 x 2.1 | 6.7 |
