Thermocouple Cables

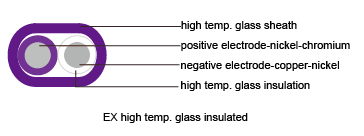

Flat Single Pair High Temp. Glass Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid. Material is according to thermocouple type.
Insulation: High Temp. glass
Outer sheath: High Temp. glass
Construction: Flat
Color code: According to IEC 60584-3
K Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | High Temp. Glass | High Temp. Glass | 704 | 1.4 x 2.3 | 10.0 |
| 20 (0.81) | High Temp. Glass | High Temp. Glass | 704 | 1.5 x 2.7 | 13.4 |
E Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | High Temp. Glass | High Temp. Glass | 704 | 1.4 x 2.3 | 10.0 |
| 20 (0.81) | High Temp. Glass | High Temp. Glass | 704 | 1.5 x 2.7 | 13.4 |
J Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | High Temp. Glass | High Temp. Glass | 370 | 1.1 x 2.2 | 10.0 |
| 20 (0.81) | High Temp. Glass | High Temp. Glass | 480 | 1.5 x 2.7 | 13.4 |
N Type
| AWG(mm) | Insulation Material | Sheath Material | Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | High Temp. Glass | High Temp. Glass | 704 | 1.4 x 2.3 | 3.4 |
| 20 (0.81) | High Temp. Glass | High Temp. Glass | 704 | 1.5 x 2.7 | 6.7 |
