Thermocouple Cables
Twisted Single Pair PFA Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: PFA polymer
Screen: Aluminum tape
Drain wire: Tinned copper
Outer sheath: PFA polymer
Construction: Round
Color code: According to IEC 60584-3

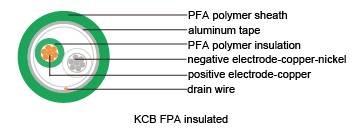

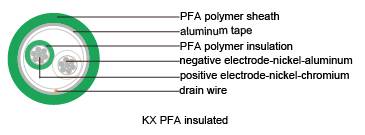

K Type
| AWG(mm) | Insulation Material | Screen Material | Sheath Material |
Max. Temp. (°C) | Nominal O.D. (mm) | Weight (kg/km) |
| 24 (0.51) | PFA Polymer | Aluminum tape | PFA Polymer | 260 | 2.7 | 13.4 |
| 24 (7/0.2) | PFA Polymer | Aluminum tape | PFA Polymer | 260 | 2.9 | 13.8 |
| 20 (0.81) | PFA Polymer | Aluminum tape | PFA Polymer | 260 | 3.7 | 30.0 |
| 20 (7/0.32) | PFA Polymer | Aluminum tape | PFA Polymer | 260 | 3.8 | 30.3 |
