NA2XH 0.6/1kV LSOH Power Cable



Application

These cables are designed for energy supply in tower, suitable for outdoors, in concrete, indoors and in cable

ducts where no mechanical damage is to be expected.

Standards

DIN VDE 0276 part 604

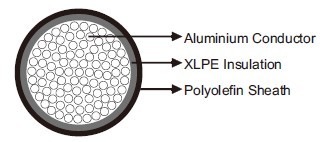

Construction

Windmill Cables

Conductor: Sector-shaped solid or round solid/stranded aluminium wire.

Insulation: Cross-linked polyethylene (XLPE).

Filling: Extruded halogen-free filling compound.

Sheath: Polyolefin, Type HM4. PVC sheath can be offered upon request (NA2XY).

Technical Data

Rated Voltage Uo/U (Um):0.6/1kV

Operating Temperatures:-40℃~+ 90℃

Minimum Bending Radius:15×OD

Short-circuit Temperature:250℃

Flame Retardant:DIN VDE 0482 Part 266-2/BS 4066 Part 3/EN 50266-2/IEC 60332-1

Halogen Free:DIN VDE 0482 Part 267/EN 50267-2-1/IEC 60754

Corrosive Gases:VDE 0482 Part 267/DIN EN 50267-2-2/IEC 60754

Smoke Density:DIN VDE 0482 Part 268/HD 606/EN 50268-12/IEC 61034

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm² mm kg/km
1×95 18.0 405
1×120 19.5 490
1×150 20.5 580
1×185 22.5 700
1×240 25.0 880
1×300 27.5 1080
1×400 30.5 1370
1×500 34.5 1760
1×630 38.5 2200
3×95 31.0 1300
3×120 34.5 1620
3×150 37.5 1930
3×185 41.0 2380
3×240 45.0 2970
4G35 26.0 890
4G50 27.5 1030
4G70 31.5 1350
4G95 34.5 1710
4G120 38.5 2120
4G150 43.5 2600
4G185 46.5 3160
4G240 50.5 3950

G: with green-yellow earth core
×: without green-yellow earth core
