Windmill Cables
NA2XS(F)2Y RE/RM Medium Voltage Power Cable
Application
These cables are commonly used in wind turbines, suitable for indoor installation and in cable ducts, outdoors,
underground and in water.
Standards
IEC 60502-2
DIN VDE 0276 part 620

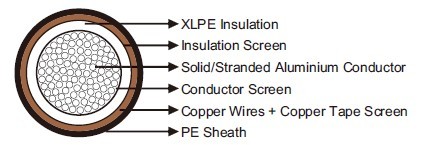

Construction
2Y.jpg)
Conductor: Circular solid (RE) or stranded (RM) aluminium conductor.
Conductor Screen: Semiconducting compound.
Insulation: XLPE.
Insulation Screen: Semiconducting compound.
Tape: Semiconducting swellable tape.
Screen: Braiding of copper wires with copper tape.
Tape: Separation tape.
Sheath: PE.
Technical Data
Rated Voltage Uo/U (Um):6/10 kV, 12/20 kV, 18/30 kV
Operating Temperatures:-40℃~+90℃
Minimum Bending Radius:15×OD
Short-circuit Temperature:250℃
Longitudinally Water-Tight:Yes
Halogen Free:Yes
Dimensions and Weight
6/10 kV
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 1×70 re | 26.5 | 760 |
| 1×95 re | 26.5 | 860 |
| 1×120 re | 28.5 | 930 |
| 1×150 re | 29.5 | 1130 |
| 1×185 re | 31.5 | 1230 |
| 1×240 re | 33.5 | 1470 |
| 1×300 re | 36.5 | 1670 |
| 1×400 re | 40.5 | 2060 |
| 1×500 re | 43.5 | 2400 |
| 1×630 re | 45.5 | 2790 |
| 1×800 re | 49.5 | 3340 |
| 1×1000 re | 53.5 | 4000 |
| 1×35 rm | 25.5 | 600 |
| 1×50 rm | 26.5 | 670 |
| 1×70 rm | 28.5 | 770 |
| 1×95 rm | 29.0 | 880 |
| 1×120 rm | 31.0 | 950 |
| 1×150 rm | 32.0 | 1150 |
| 1×185 rm | 34.0 | 1250 |
| 1×240 rm | 36.0 | 1500 |
| 1×300 rm | 38.5 | 1700 |
| 1×400 rm | 42.5 | 2100 |
| 1×500 rm | 45.5 | 2450 |
| 1×630 rm | 47.5 | 2850 |
| 1×800 rm | 52.5 | 3490 |
| 1×1000 rm | 56.5 | 4080 |
12/20 kV
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 1×70 re | 30.5 | 910 |
| 1×95 re | 31.5 | 1030 |
| 1×120 re | 32.5 | 1130 |
| 1×150 re | 33.5 | 1320 |
| 1×185 re | 35.5 | 1470 |
| 1×240 re | 38.5 | 1720 |
| 1×300 re | 40.5 | 1960 |
| 1×400 re | 43.5 | 2300 |
| 1×500 re | 46.5 | 2740 |
| 1×630 re | 49.5 | 3070 |
| 1×800 re | 53.5 | 3680 |
| 1×1000 re | 57.5 | 4360 |
| 1×50 rm | 30.5 | 820 |
| 1×70 rm | 32.5 | 930 |
| 1×95 rm | 33.5 | 1050 |
| 1×120 rm | 35.0 | 1150 |
| 1×150 rm | 36.0 | 1350 |
| 1×185 rm | 38.0 | 1500 |
| 1×240 rm | 41.0 | 1750 |
| 1×300 rm | 43.0 | 2000 |
| 1×400 rm | 46.0 | 2350 |
| 1×500 rm | 49.0 | 2800 |
| 1×630 rm | 51.5 | 3140 |
| 1×800 rm | 57.5 | 3840 |
| 1×1000 rm | 60.5 | 4460 |
18/30 kV
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 1×70 re | 34.5 | 1180 |
| 1×95 re | 35.5 | 1320 |
| 1×120 re | 37.5 | 1420 |
| 1×150 re | 38.5 | 1670 |
| 1×185 re | 40.5 | 1810 |
| 1×240 re | 42.5 | 2010 |
| 1×300 re | 45.5 | 2300 |
| 1×400 re | 48.5 | 2740 |
| 1×500 re | 51.5 | 3140 |
| 1×630 re | 55.5 | 3480 |
| 1×800 re | 59.5 | 4100 |
| 1×1000 re | 63.5 | 4800 |
| 1×50 rm | 35.0 | 1100 |
| 1×70 rm | 37.0 | 1200 |
| 1×95 rm | 38.0 | 1350 |
| 1×120 rm | 40.0 | 1450 |
| 1×150 rm | 41.0 | 1700 |
| 1×185 rm | 43.0 | 1850 |
| 1×240 rm | 45.0 | 2050 |
| 1×300 rm | 48.0 | 2350 |
| 1×400 rm | 51.0 | 2800 |
| 1×500 rm | 54.0 | 3200 |
| 1×630 rm | 57.5 | 3570 |
| 1×800 rm | 62.5 | 4280 |
| 1×1000 rm | 66.5 | 4970 |
