NAYY 0.6/1kV Power/Control Cable



Application

These cables are designed for power lines of fixed routing in wind tower installation, also used as energy supply

cables installed in underground, water, cable ducts, power stations, outdoors, indoors, for industry and

distribution boards as well as in subscriber networks, where mechanical damages are not expected.

Standards

IEC 60502-1

DIN VDE 0276 part 603

Construction

Windmill Cables

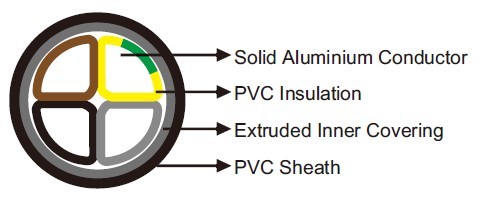

Conductor: Solid aluminium wires, round or sector shape according to VDE 0295/IEC 60228.

Insulation: PVC.

Inner Covering: Extruded inner covering.

Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um):0.6/1kV

Operating Temperatures:flexing: -5℃~+50℃; fixed: -40℃~+70℃

Minimum Bending Radius:12×OD

Maximum Permissible Tensile Load:30N/mm²

Short-circuit Temperature:160℃

Flame Retardant:VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1

Silicone Free:Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm² mm kg/km
1×25 re 13.0 200
1×50 rm 16.5 310
1×70 rm 18.5 400
1×95 rm 21.0 520
1×120 rm 22.5 600
1×150 rm 23.5 700
1×185 rm 25.5 870
1×240 rm 28.5 1090
1×300 rm 31.5 1335
1×400 rm 35.5 1685
1×500 rm 39.0 2075
1×630 rm 43.0 2540
4×25 re 27.0 1000
4×35 re 29.0 1200
4×50 se 30.5 1350
4×70 se 34.5 1750
4×120 se 42.5 2630
4×150 se 45.5 3000
4×185 se 50.5 3780
4×240 se 54.0 4740
4G25 re 27.0 1000
4G35 re 29.0 1200
4G50 se 30.5 1350
4G70 se 34.5 1750
4G95 se 38.5 2250
4G120 se 42.5 2750
4G150 se 45.5 3200
4G185 se 50.5 3950
4G240 se 54.0 4700
4G240 sm 55.5 4960
4G150 se+1×1.5 re 45.5 3010
4G150 se+2×1.5 re 45.5 3020

G: with green-yellow earth core
×: without green-yellow earth core
