Windmill Cables
QFCI
Application
These cables are designed for data transmission in the Tower.
Standards
IEC 60794

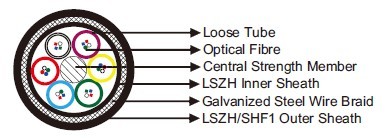

Construction
Fibre Type: Loose Tube.
Support Element: Central strength member
Inner Sheath: LSZH.
Armour: Galvanized steel wire braid (GSWB).
Outer Sheath: SHF1/LSZH.
Technical Data
Operating Temperatures:-40℃~+70℃
Minimum Bending Radius:350mm
Flame Retardant:IEC 60332-3
Halogen Free:IEC 60754
Smoke Density:IEC 61034
Fire Resistant:IEC 60331-25
No-Fire Propagation:IEC 60331-3-24
Dimensions and Weight
| Construction | Fibre Type | Nominal Overall Diameter | Nominal Weight |
| No. of fibres | - | mm | kg/km |
| 2~48 | Multimode G50/125 | 16.5 | 350 |
| 2~48 | Multimode G62.5/125 | 16.5 | 350 |
| 2~48 | Single-Mode E9/125 | 16.5 | 350 |
