Windmill Cables
Application
These cables are designed for use at medium mechanical stresses in wind turbines.
Standards
UL 758
DIN VDE 0250

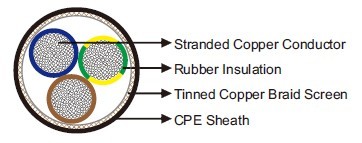

Construction
Conductor: Stranded bare copper, class 5 according to IEC 60228/DIN EN 60228.
Insulation: Rubber compound.
Screen: Tinned copper wires. Mixed braid of tinned copper wires and polyester yarn can be offered upon request.
Sheath: CPE.
Technical Data
Rated Voltage Uo/U (Um):600/1000V (DIN VDE 0250)/ 1000V (AWM 758)
Operating Temperatures:-40℃~+90℃
Maximum Permissible Tensile Load:15 N/mm²
Minimum Bending Radius:flexing: 10×OD; fixed: 6×OD
Short-circuit Temperature:250℃
Flame Retardant:IEC 60332-1
Oil Resistant:Yes
Ozone Resistant:Yes
UV Resistant:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 1×95 | 23.0 | 1120 |
| 1×120 | 26.0 | 1607 |
| 1×185 | 30.5 | 2341 |
| 1×240 | 34.0 | 2953 |
