Y UL/CSA 600V 90°C
Application
These flexible control cable rated at 600V are used in machine tools, control systems, connection between
control panels and machines, assembly lines and other industrial equipment, suitable for installation in dry, moist
or wet environment and moderate flexing applications.
Standards
UL AWM I/II A/B Style 2587
CSA

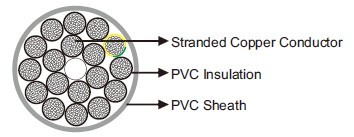

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC60228.
Insulation: PVC Type TI3 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. PVC TI1 can be offered upon
request.
Sheath: PVC Type YM5 according to DIN VDE 0207 part 5, class 43 UL-Std. 1581. PVC TM5 can be offered upon
request.
Technical Data
Rated Voltage Uo/U (Um):600V
Operating Temperatures:flexing: -5℃~+90℃; fixed: -40℃~+90℃
Minimum Bending Radius:flexing: 7.5×OD; fixed: 4×OD
Flame Retardant:VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Oil Resistant:Yes
Silicone Free:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 2×0.5 | 5.9 | 49 |
| 3G0.5 | 6.3 | 58 |
| 4G0.5 | 6.7 | 69 |
| 5G0.5 | 7.3 | 84 |
| 7G0.5 | 8.5 | 123 |
| 8G0.5 | 9.6 | 140 |
| 9G0.5 | 10.4 | 177 |
| 12G0.5 | 10.9 | 192 |
| 18G0.5 | 12.9 | 256 |
| 25G0.5 | 15.5 | 358 |
| 34G0.5 | 17.7 | 487 |
| 41G0.5 | 19.9 | 580 |
| 2×1 | 6.3 | 53 |
| 3×(G)1 | 6.7 | 61 |
| 4G1 | 7.3 | 74 |
| 5G1 | 7.9 | 90 |
| 7G1 | 9.2 | 130 |
| 8G1 | 10.0 | 144 |
| 9G1 | 11.1 | 180 |
| 12G1 | 11.8 | 198 |
| 18G1 | 14.1 | 274 |
| 25G1 | 17.1 | 384 |
| 34G1 | 19.3 | 494 |
| 41G1 | 21.2 | 508 |
| 2×1.5 | 6.9 | 73 |
| 3G1.5 | 7.5 | 94 |
| 4G1.5 | 8.1 | 117 |
| 5G1.5 | 8.7 | 140 |
| 7G1.5 | 10.6 | 186 |
| 9G1.5 | 12.8 | 244 |
| 12G1.5 | 13.4 | 319 |
| 18G1.5 | 15.8 | 451 |
| 25G1.5 | 18.9 | 625 |
| 34G1.5 | 21.7 | 840 |
| 41G1.5 | 23.7 | 1032 |
| 2×2.5 | 8.2 | 115 |
| 3G2.5 | 8.7 | 143 |
| 4G2.5 | 10.1 | 185 |
| 5G2.5 | 10.9 | 221 |
| 7G2.5 | 13.1 | 293 |
| 9G2.5 | 15.6 | 429 |
| 12G2.5 | 16.7 | 563 |
| 18G2.5 | 19.6 | 854 |
| 19G2.5 | 19.7 | 914 |
| 25G2.5 | 24.0 | 1188 |
| 3G4 | 11.2 | 232 |
| 4G4 | 12.5 | 298 |
| 5G4 | 13.8 | 358 |
| 7G4 | 16.3 | 460 |
| 3G6 | 12.9 | 360 |
| 4G6 | 14.2 | 402 |
| 5G6 | 15.9 | 484 |
| 7G6 | 19.4 | 630 |
| 3G10 | 16.9 | 535 |
| 4G10 | 18.5 | 653 |
| 5G10 | 20.3 | 786 |
| 7G10 | 22.3 | 1100 |
| 2×16 | 19.4 | 640 |
| 3G16 | 20.7 | 810 |
| 4G16 | 23.2 | 1045 |
| 5G16 | 25.7 | 1260 |
| 7G16 | 28.4 | 1760 |
| 3G25 | 25.0 | 1180 |
| 4G25 | 28.1 | 1507 |
| 5G25 | 30.9 | 1858 |
| 7G25 | 35.5 | 2830 |
| 3G35 | 28.6 | 1590 |
| 4G35 | 31.7 | 2123 |
| 5G35 | 35.2 | 2612 |
| 3G50 | 31.2 | 2652 |
| 4G50 | 35.8 | 3058 |
| 5G50 | 38.7 | 4093 |
| 3G70 | 39.2 | 3307 |
| 4G70 | 41.6 | 4254 |
| 5G70 | 48.4 | 5661 |
| 3G95 | 42.1 | 4867 |
| 4G95 | 46.0 | 5762 |
| 5G95 | 51.2 | 7208 |
| 3G120 | 47.8 | 5580 |
| 4G120 | 52.8 | 7280 |
| 5G120 | 59.0 | 8692 |
G: with green-yellow earth core
×: without green-yellow earth core
