Windmill Cables
Y 0.6/1kV
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in
tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants
and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
DIN VDE 0262/12.95
DIN VDE 0281 part 13

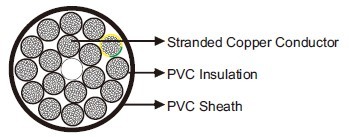

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type TI 2/YI 2.
Sheath: PVC Type TM 2/YM 2.
Technical Data
Rated Voltage Uo/U (Um):600/1000V
Operating Temperatures:flexing: -5℃~+80℃; fixed: -40℃~+80℃
Minimum Bending Radius:flexing: 7.5×OD; fixed: 4×OD
Flame Retardant:VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Oil Resistant:Yes
Silicone Free:Yes
UV Resistant:Yes
Dimensions and Weight
| Construction | Nominal Overall Diameter | Nominal Weight |
| No. of cores×mm² | mm | kg/km |
| 2×0.5 | 6.3 | 56 |
| 3G0.5 | 6.7 | 68 |
| 3×0.5 | 6.7 | 68 |
| 4G0.5 | 7.2 | 100 |
| 4×0.5 | 7.2 | 100 |
| 5G0.5 | 8.0 | 117 |
| 5×0.5 | 8.0 | 117 |
| 6G0.5 | 8.9 | 126 |
| 7G0.5 | 8.9 | 138 |
| 7×0.5 | 8.9 | 138 |
| 8G0.5 | 10.2 | 150 |
| 8×0.5 | 10.2 | 150 |
| 10G0.5 | 11.2 | 176 |
| 12G0.5 | 11.4 | 200 |
| 12×0.5 | 11.4 | 200 |
| 14G0.5 | 12.3 | 230 |
| 16G0.5 | 12.9 | 250 |
| 18G0.5 | 13.8 | 276 |
| 20G0.5 | 14.4 | 293 |
| 21G0.5 | 14.4 | 305 |
| 25G0.5 | 16.4 | 335 |
| 30G0.5 | 17.2 | 348 |
| 32G0.5 | 18.0 | 355 |
| 34G0.5 | 18.7 | 520 |
| 40G0.5 | 20.2 | 590 |
| 42G0.5 | 20.2 | 595 |
| 50G0.5 | 22.1 | 715 |
| 52G0.5 | 22.1 | 740 |
| 61G0.5 | 23.6 | 840 |
| 65G0.5 | 25.0 | 880 |
| 80G0.5 | 27.2 | 960 |
| 100G0.5 | 30.2 | 1050 |
| 2×0.75 | 6.6 | 66 |
| 3G0.75 | 7.0 | 74 |
| 3×0.75 | 7.0 | 74 |
| 4G0.75 | 7.6 | 126 |
| 4×0.75 | 7.6 | 126 |
| 5G0.75 | 8.4 | 140 |
| 5×0.75 | 8.4 | 140 |
| 6G0.75 | 9.3 | 170 |
| 6×0.75 | 9.3 | 170 |
| 7G0.75 | 9.3 | 190 |
| 7×0.75 | 9.3 | 190 |
| 8G0.75 | 10.9 | 212 |
| 8×0.75 | 10.9 | 212 |
| 9G0.75 | 11.8 | 227 |
| 10G0.75 | 11.8 | 238 |
| 12G0.75 | 12.3 | 257 |
| 12×0.75 | 12.3 | 257 |
| 14G0.75 | 12.9 | 286 |
| 15G0.75 | 13.8 | 319 |
| 18G0.75 | 14.5 | 362 |
| 20G0.75 | 15.4 | 394 |
| 21G0.75 | 16.1 | 422 |
| 25G0.75 | 17.4 | 486 |
| 32G0.75 | 19.1 | 595 |
| 34G0.75 | 19.9 | 638 |
| 37G0.75 | 19.9 | 696 |
| 40G0.75 | 21.5 | 726 |
| 41G0.75 | 21.5 | 750 |
| 42G0.75 | 21.5 | 770 |
| 50G0.75 | 23.5 | 895 |
| 61G0.75 | 25.3 | 1070 |
| 65G0.75 | 26.9 | 1110 |
| 80G0.75 | 28.9 | 1500 |
| 100G0.75 | 32.1 | 1889 |
| 2×1 | 7.0 | 80 |
| 3G1 | 7.3 | 96 |
| 3×1 | 7.3 | 96 |
| 4G1 | 8.2 | 100 |
| 4×1 | 8.2 | 100 |
| 5G1 | 9.2 | 130 |
| 5×1 | 9.2 | 130 |
| 6G1 | 9.9 | 150 |
| 7G1 | 9.9 | 170 |
| 7×1 | 9.9 | 170 |
| 8G1 | 11.6 | 230 |
| 9G1 | 12.8 | 250 |
| 10G1 | 12.8 | 270 |
| 10×1 | 12.8 | 270 |
| 12G1 | 13.0 | 290 |
| 12×1 | 13.0 | 290 |
| 14G1 | 14.0 | 320 |
| 16G1 | 14.8 | 360 |
| 18G1 | 15.7 | 405 |
| 18×1 | 15.7 | 405 |
| 20G1 | 16.7 | 450 |
| 21G1 | 17.4 | 510 |
| 24G1 | 18.4 | 550 |
| 25G1 | 18.8 | 570 |
| 25×1 | 18.8 | 570 |
| 26G1 | 18.8 | 590 |
| 30×1 | 19.9 | 650 |
| 34G1 | 21.5 | 750 |
| 36G1 | 21.5 | 790 |
| 40G1 | 23.2 | 850 |
| 40×1 | 23.2 | 850 |
| 41G1 | 23.2 | 890 |
| 42G1 | 23.2 | 900 |
| 50G1 | 25.6 | 1100 |
| 56G1 | 26.4 | 1190 |
| 61G1 | 27.3 | 1266 |
| 65G1 | 29.0 | 1560 |
| 80G1 | 31.4 | 1810 |
| 100G1 | 34.8 | 1950 |
| 3G16 | 20.5 | 700 |
| 2×1.5 | 8.2 | 95 |
| 3G1.5 | 8.6 | 112 |
| 3×1.5 | 8.6 | 112 |
| 4G1.5 | 9.6 | 139 |
| 4×1.5 | 9.6 | 139 |
| 5G1.5 | 10.7 | 170 |
| 5×1.5 | 10.7 | 170 |
| 6G1.5 | 11.6 | 190 |
| 7G1.5 | 11.6 | 225 |
| 7×1.5 | 11.6 | 225 |
| 8G1.5 | 13.8 | 250 |
| 9G1.5 | 15.2 | 280 |
| 10G1.5 | 15.2 | 300 |
| 11G1.5 | 15.5 | 330 |
| 12G1.5 | 15.5 | 370 |
| 12×1.5 | 15.5 | 370 |
| 14G1.5 | 16.6 | 400 |
| 16G1.5 | 17.5 | 450 |
| 18G1.5 | 18.6 | 520 |
| 19G1.5 | 18.6 | 550 |
| 20G1.5 | 19.7 | 600 |
| 21G1.5 | 20.6 | 600 |
| 25G1.5 | 22.5 | 730 |
| 32G1.5 | 24.5 | 880 |
| 34G1.5 | 25.6 | 950 |
| 40G1.5 | 27.6 | 990 |
| 42G1.5 | 27.6 | 1120 |
| 50G1.5 | 30.4 | 1400 |
| 56G1.5 | 31.5 | 1530 |
| 61G1.5 | 32.6 | 1700 |
| 65G1.5 | 34.8 | 1900 |
| 80G1.5 | 37.4 | 2300 |
| 100G1.5 | 41.6 | 2700 |
| 2×2.5 | 9.4 | 160 |
| 3G2.5 | 10.1 | 175 |
| 3×2.5 | 10.1 | 175 |
| 4G2.5 | 11.2 | 203 |
| 4×2.5 | 11.2 | 203 |
| 5G2.5 | 12.5 | 251 |
| 5×2.5 | 12.5 | 251 |
| 7G2.5 | 13.8 | 330 |
| 7×2.5 | 13.8 | 330 |
| 8G2.5 | 16.1 | 400 |
| 12G2.5 | 18.3 | 553 |
| 14G2.5 | 19.4 | 630 |
| 18G2.5 | 22.0 | 795 |
| 21G2.5 | 25.0 | 930 |
| 25G2.5 | 26.7 | 1110 |
| 34G2.5 | 30.4 | 1450 |
| 42G2.5 | 33.0 | 1750 |
| 50G2.5 | 36.2 | 2100 |
| 61G2.5 | 38.8 | 2540 |
| 100G2.5 | 49.5 | 3850 |
| 2×4 | 11.4 | 180 |
| 3G4 | 12.3 | 230 |
| 4G4 | 13.7 | 310 |
| 5G4 | 15.2 | 410 |
| 7G4 | 16.7 | 540 |
| 8G4 | 19.9 | 710 |
| 12G4 | 22.6 | 860 |
| 3G6 | 14.0 | 370 |
| 4G6 | 15.5 | 430 |
| 5G6 | 17.3 | 650 |
| 7G6 | 19.2 | 860 |
| 3G10 | 16.4 | 660 |
| 4G10 | 18.2 | 790 |
| 5G10 | 20.4 | 960 |
| 7G10 | 22.4 | 1300 |
| 3G16 | 20.5 | 700 |
| 4G16 | 22.6 | 1100 |
| 5G16 | 25.4 | 1600 |
| 7G16 | 27.8 | 1890 |
| 3G25 | 24.8 | 1450 |
| 4G25 | 27.6 | 1600 |
| 5G25 | 30.3 | 2050 |
| 7G25 | 33.6 | 2900 |
| 3G35 | 27.5 | 1900 |
| 4G35 | 30.5 | 2400 |
| 5G35 | 34.1 | 2900 |
| 3G50 | 33.5 | 2700 |
| 4G50 | 37.2 | 3400 |
| 5G50 | 41.8 | 4361 |
| 3G70 | 38.7 | 3300 |
| 4G70 | 42.7 | 4400 |
| 5G70 | 47.6 | 5807 |
| 3G95 | 43.3 | 5050 |
| 4G95 | 48.0 | 6010 |
| 5G95 | 52.8 | 7752 |
| 4G120 | 52.6 | 7500 |
| 4G150 | 61.3 | 8640 |
| 4G185 | 67.1 | 10380 |
G: with green-yellow earth core
×: without green-yellow earth core
