YCY 300/500V



Application

These screened cables are designed for use as a data and control cable in machinery, computer systems etc. as

well as a signal cable for electronics.

Standards

DIN VDE 0245

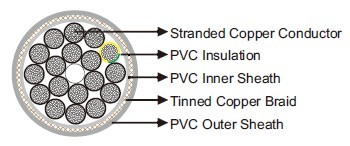

Construction

Windmill Cables

Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.

Insulation: PVC Type YI 2.

Inner Sheath: PVC.

Screen: Tinned copper braid.

Outer Sheath: PVC Type YM 2.

Technical Data

Rated Voltage Uo/U (Um):300/500V

Operating Temperatures:flexing: -15℃~+70℃; fixed: -40℃~+70℃

Minimum Bending Radius:flexing: 20×OD; fixed: 10×OD

Flame Retardant:IEC 60332-1

Ozone Resistant:Yes

Silicone Free:Yes

Lead Free:Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores mm² mm kg/km
2×0.5 5.6 65
3G0.5 6.6 72
4G0.5 7.6 77
5G0.5 8.3 90
7G0.5 9.3 114
12G0.5 11.0 160
18G0.5 12.0 216
2×0.75 7.1 71
3G0.75 7.4 82
4G0.75 7.9 94
5G0.75 8.4 109
7G0.75 9.0 122
12G0.75 11.2 192
18G0.75 12.7 261
25G0.75 16.0 388
2×1 7.3 78
3G1 7.6 90
4G1 8.1 106
5G1 8.7 121
7G1 9.3 144
12G1 11.7 225
18G1 13.5 315
25G1 16.6 455
34G1 19.5 657
41G1 20.4 698
50G1 22.9 918
2×1.5 7.9 94
3G1.5 8.3 112
4G1.5 9.1 133
5G1.5 9.7 148
7G1.5 10.2 183
12G1.5 13.3 295
18G1.5 16.4 451
25G1.5 18.6 599
3G2.5 9.5 158
4G2.5 10.3 191
5G2.5 11.5 213
7G2.5 12.3 274
12G2.5 13.3 530
3G4 10.7 218
4G4 12.2 274
5G4 12.7 317
4G6 14.0 378
5G6 16.4 493
4G10 17.9 636
5G10 19.4 760
4G16 21.5 953
5G16 23.2 1130
4G25 25.2 1401
5G25 28.2 1935
4G35 29.9 1886
5G35 32.0 2268
4G50 34.4 2674
5G50 43.0 4150
4G70 46.8 4600
5G70 51.8 5750
4G95 51.0 6060
5G95 56.0 7580
4G120 56.0 7315
5G120 63.0 9150
4G150 63.5 9680
5G150 69.5 10170

G: with green-yellow earth core
×: without green-yellow earth core
