400Hz Airport Cables 7-core
Applications
Airprot cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar
stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

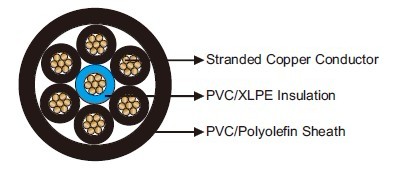

Construction
Conductor: Stranded bare copper conductor, Class 2 or 5 to VDE 0295/IEC 60228.
Insulation: PVC/XLPE.
Outer Sheath: PVC. Polyolefin can be offered upon request.
Technical Data
Rated Voltage Uo/U (Um) :600/1000V
Operating Temperatures :-20℃~+70℃
Minimum Bending Radius :static: 6×OD; dynamic: 12×OD
Impacted Resistant :Yes
Weather Resistant :Yes
Dimensions and Weight
| Construction | Nominal Diameter of Single Core | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm² | mm | mm | kg/km |
| 7×25 | 9.6 | 35.0 | 2800 |
| 7×35 | 10.6 | 39.0 | 3500 |
| 7×50 | 11.8 | 42.9 | 4000 |
| 7×70 | 13.6 | 49.2 | 5440 |
