 400Hz Airport Cables 7-core With
Concentric Copper Wire Shield & Control Wire
Applications
Airport cables are designed for 400 Hz systems for power supply of aircraft, computer systems and
radar
stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

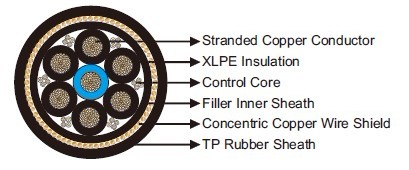

Construction
Conductor: Stranded bare copper conductor,
Class 6 to VDE 0295/IEC 60228.
Insulation: XLPE.
Control Core: 1mm² stranded copper conductor with PVC insulation.
Inner Sheath: Filler.
Shield: Concentric copper conductor (25mm²).
Outer Sheath: TP rubber.
Technical Data
Rated Voltage Uo/U (Um) :600/1000V
Operating Temperatures :-55℃~+85℃
Minimum Bending Radius :static: 8×OD; dynamic: 12×OD
Flame Retardant :Yes
Dimensions and Weight
| Construction |
Nominal Diameter
of Power Core |
Nominal Diameter
of Control Core |
Nominal Diameter
Under Shield |
Nominal Overall
Diameter |
Nominal Weight |
| No. ×mm² |
mm |
mm |
mm |
mm |
kg/km |
| 7×35+6×(4×1) |
10.5 |
2.1 |
40.8 |
42.8 |
3000 |
|
