400Hz Airport Cables 7-core With Control Wires & Reinforcement

Airport cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar

stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

VDE 0295

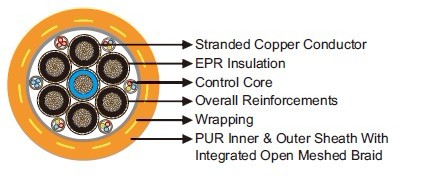

Conductor: Stranded bare copper conductor, Class 5/Class 6 to VDE 0295/IEC 60228.

Insulation: EPR. HEPR/TPE /XLEPR can be offered upon request.

Control Core: 1mm² stranded copper conductor with ethylene tetrafluorethylene insulation.

Thermoplastic/TPE/polyolefin can be offered upon request.

Cable Assembling: 6 power cores laid-up over a centre core, control cores laid-up in triads/quads located in

outer interstices. Each core has an overall reinforcement.

Wrapping: Common core covering of wrapping and/or extruded filling compound.

Outer Sheath: Bonded inner and outer sheath of polyurethane with integrated open meshed braid.

Rated Voltage Uo/U (Um) :600/1000V

Operating Temperatures :-20℃~+70℃

Minimum Bending Radius :static: 4×OD; dynamic: 6×OD

Flame Retardant :Yes

Abrasion Resistant :Yes

Weather Resistant :Yes

UV Resistant :Yes

Oil Resistant :Yes

Construction	Nominal Diameter of Power Core	Nominal Diameter of Control Core	Nominal Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	mm	kg/km
7×25+6×(3×1)	9.6	1.8	38.3	2600
7×35+6×(3×1)	10.5	2.1	42.0	3100
7×25+6×(4×1)	9.6	1.8	42.0	2850
7×35+6×(4×1)	10.9	1.9	44.0	3050
7×50+6×(4×1)	11.8	2.1	51.0	4030
