400Hz Airport Cables 7-core With Copper Tape Shield
Applications
Airport cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar
stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

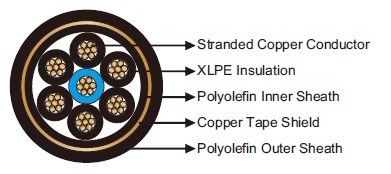

Construction
Conductor: Stranded bare copper conductor, Class 5 to VDE 0295/IEC 60228.
Insulation: XLPE.
Inner Sheath: Polyolefin.
Shield: Copper tape shield.
Outer Sheath: Polyolefin.
Technical Data
Rated Voltage Uo/U (Um) :600/1000V
Operating Temperatures :-40℃~+90℃
Minimum Bending Radius :static: 9×OD; dynamic: 12×OD
Halogen Free :Yes
No Corrosive & Toxic Gases :Yes
Low Smoke :Yes
Flame Retardant :Yes
Dimensions and Weight
| Construction | Nominal Diameter of Single Core | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm² | mm | mm | kg/km |
| 7×35 | 9.7 | 41.8 | 3450 |
| 7×50 | 11.8 | 47.8 | 4660 |
| 7×70 | 11.9 | 54.1 | 5930 |
