Airport Cable


 400Hz Airport Cables 7-core With Double Sheath & Control Wires

Applications

Airprot cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar

stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

Construction

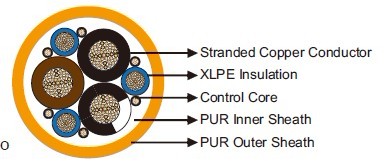

400Hz Airport Cables 7-core With Double Sheath & Control Wires

Conductor: Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.

Insulation: XLPE.

Control Core: 1mm² stranded copper conductor with PVC insulation.

Inner Sheath: PUR

Outer Sheath: PUR.

Technical Data

Rated Voltage Uo/U (Um) :600/1000V

Operating Temperatures :-55℃~+80℃

Minimum Bending Radius :static: 4×OD; dynamic: 6×OD

Flame Retardant :Yes

Abrasion Resistant :Yes

UV Resistant :Yes

Oil Resistant :Yes

Dimensions and Weight

Construction Nominal Diameter of
50mm² Core 		Nominal Diameter of
16mm² Core 		Nominal Diameter of
Control Core 		Nominal Diameter Under
Outer Sheath 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm   mm mm mm kg/km
3×50+3×16+6×1 12.2 7.2 2.5 30.4 34.0 2200
