 400Hz Airport Cables 7-core With Shielded Control Wires
Applications
Airprot cables are designed for 400 Hz systems for power supply of aircraft, computer systems and
radar
stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
Standards
VDE 0295

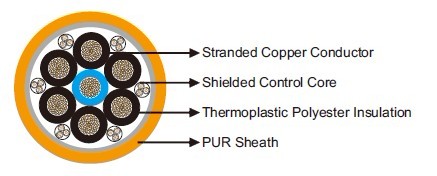

Construction
Conductor: Stranded copper conductor,
Class 6 to VDE 0295/IEC 60228.
Insulation: Thermoplastic polyester.
Control Core: 1mm² stranded copper conductor with polyolefin insulation & tinned copper braid.
Outer Sheath: PUR. TPE can be offered upon request.
Technical Data
Rated Voltage Uo/U (Um) :600/1000V
Operating Temperatures :-40℃~+90℃
Minimum Bending Radius :static: 4×OD; dynamic: 6×OD
Halogen Free :Yes
No Corrosive & Toxic Gases :Yes
Flame Retardant :Yes
Abrasion Resistant :Yes
UV Resistant :Yes
Oil Resistant :Yes
Dimensions and Weight
| Construction |
Nominal Diameter of
Power Core |
Nominal Diameter of
Control Core |
Nominal Overall
Diameter |
Nominal Weight |
| No. ×mm² |
mm |
mm |
mm |
kg/km |
| 7×25+6×(3×1)C |
9.6 |
2.1 |
37.5 |
2800 |
| 7×35+6×(3×1)C |
11.1 |
2.1 |
40.3 |
3500 |
| 7×35+6×(4×1)C |
11.1 |
2.1 |
44.5 |
4200 |
|
