Secondary Circuit Cable 450/750V to ADP Specification
Applications
Airport cables are used for connection between transformers and Airfield Lighting Equipment.
Standards
ADP (Aéroport de Paris) specification

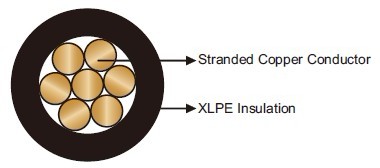

Construction
Conductor: Stranded bare copper.
Insulation: XLPE.
Technical Data
Rated Voltage Uo/U (Um) :450/750V
Maximum Conductor Temperature :90℃
Short Circuit Temperature :250℃
Operating Temperatures :-20℃~+70℃
Minimum Bending Radius :5×OD
Impacted Resistant:Yes
Weather Resistant:Yes
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | kg/km |
| 1×4 | 0.7 | 3.5 | 4.5 | 42 |
