Airport Pavement Cable 600V
Applications
Airport cables are used as airport pavement cable for secondary electrical circuits.
Standards
FAA 150/5345-30

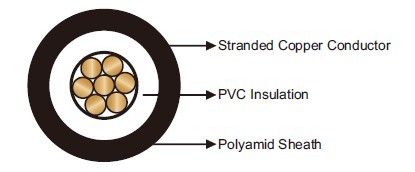

Construction
Conductor: Stranded copper conductor.
Insulation: PVC.
Sheath: Polyamid (nylon).
Technical Data
Rated Voltage Uo/U (Um) :600V
Operating Temperatures :-45℃~+85℃
Minimum Bending Radius :5×OD
Abrasion Resistant :Yes
UV Resistant :Yes
Oil Resistant :Yes
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm²/AWG | mm | mm | mm | kg/km |
| 1×4 mm² | 0.6 | 0.15 | 4.1 | 48 |
| 1×12 | 0.6 | 0.15 | 3.8 | 41 |
| 1×10 | 0.8 | 0.15 | 4.9 | 66 |
