SACS (Security Access Control System)

Card Reader Cable FFX200 05mRZ1-R/F 6G0.5

FFX200 05mRZ1-R 6G0.5 (CU/MGT+XLPE/LSZH 6×0.5mmsq 300/500V class 2)

FFX200 05mRZ1-F 6G0.5 (CU/MGT+XLPE/LSZH 6×0.5mmsq 300/500V class 5)

Airport cables are multicore stranded flexible cables sheathed with thermoplastic LSZH compound. Airport cables

have the ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow

down the spreading of the fire as the cables may pass from one area to another within a building. Applications

can be found in control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise

buildings.

Basic design :BS 7629-1

Halogen Free :IEC 60754-1

No corrosive gas emission :IEC 60754-2

Minimum Smoke Emission :IEC 61034-1/2

Reduced Fire Propagation :IEC 60332-3C / NF C 32070-2.2 (C1)

Flame Retardance :IEC 60332-1 / NF C 32-070-2.1 (C2)

Fire Resistance :IEC 60331 / NF C 32070-2.3(CR1)

300/500V

FFX200 05mRZ1-F 6G0.5 (CU/MGT+XLPE/LSZH 6×0.5mmsq 300/500V class 5)

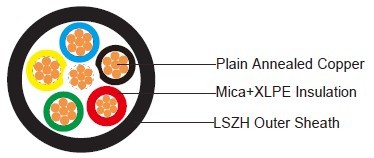

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5.

Insulation: Mica glass tape covered by extruded cross-linked XLPE compound.

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

Dielectric test: 2000 V r.m.s. x 5’ (core/core)

Insulation resistance :1000 MΩ x km (at 20°C)

Short circuit temperature :250°C

Temperature range during operation (fixed state): -30°C – +90°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 8 × Overall Diameter

FFX200 05mRZ1-R 6G0.5

FFX200 05mRZ1-F 6G0.5

No.of core	Nominal Cross Sectional Area	Number & Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	mm2	No/mm	mm	mm	mm	kg/km
6	0.5	7/0.31	0.5	0.5	10.9	61
6	0.5	16/0.2	0.5	0.5	10.9	61
