FAA L-824 Type C Sheathed 5kV
Applications
Airport cables are used for interconnecting the transformers and the current regulator of airfield lighting systems
in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction
lighting, can be installed in conduit and direct burial.
Standards
FAA L-824 Type C
ICEA S-96-659/NEWA WC71

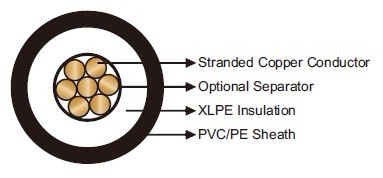

Construction
Conductor: Stranded bare copper to ASTM B3 and ASTM B8.
Optional Separator: Optional separator or conductor shield be applied.
Insulation: XLPE.
Sheath: PE/PVC.
Technical Data
Rated Voltage Uo/U (Um) :5kV
Maximum Conductor Temperature :90℃
Short Circuit Temperature :250℃
Operating Temperatures :-40℃~+90℃
Minimum Bending Radius :static: 10×OD; dynamic: 20×OD
Impacted Resistant:Yes
Weather Resistant:Yes
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| No.× AWG | - | mm | inches | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7 | 2.3 | 0.09 | 0.8 | 0.03 | 9.9 | 0.39 | 180 | 121 |
| 1×8 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 10.1 | 0.396 | 95 | 64 |
| 1×6 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 11.0 | 0.433 | 127 | 85 |
| 1×4 | 7 | 2.3 | 0.09 | 1.14 | 0.045 | 13.0 | 0.509 | 164 | 110 |
