Airport Cable |  |
|
|
|||
 |
|
FL2XCYRY
Applications
Airport cables are used as airfield lighting equipment primary cables for the series circuit connecting the
Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Standards
ENV 50213
IEC 60502-1

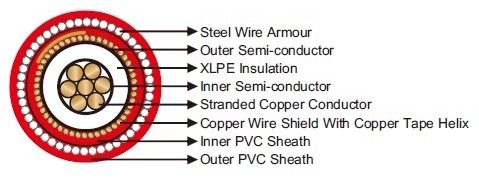

Construction
Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.
Inner Sheath: PVC.
Armour: Steel wire armour.
Outer Sheath: PVC.
Technical Data
Rated Voltage Uo/U (Um) :6/10kV
Maximum Conductor Temperature :90℃
Short Circuit Temperature :250℃
Operating Temperatures :-40℃~+90℃
Minimum Bending Radius :15×OD
Flame Retardant :Yes
Impacted Resistant :Yes
Weather Resistant :Yes
Oil Resistant :Yes
Dimensions and Weight
| Construction | Nominal Insulation Thickness | Nominal Shield Cross Section | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No. ×mm² | mm | mm² | mm | mm | kg/km |
| 1×6 | 3.5 | 6 | 1.4 | 20.5 | 710 |
