Airport Cable


 FLYCY

Applications

Airport cables are used as airfield lighting equipment primary cables for the series circuit connecting the

Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

ENV 50213

IEC 60502-1

VDE 0271

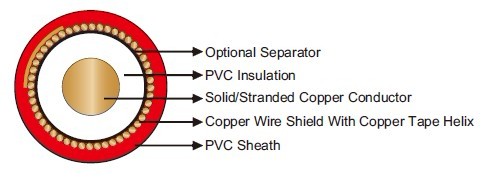

Construction

FLYCY

Conductor: Solid or stranded bare copper conductor.

Insulation: PVC.

Optional Separator: Separator tape.

Shield: Concentric layer of bare copper wires, counter helix of a copper tape.

Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um) :1/2kV, 1.5/3kV, 2.5/5kV, 3/6kV, 5/10kV

Maximum Conductor Temperature :90℃

Short Circuit Temperature :250℃

Operating Temperatures :-40℃~+90℃

Minimum Bending Radius :15×OD

Flame Retardant :Yes

Impacted Resistant :Yes

Weather Resistant :Yes

Dimensions and Weight

1/2kV

Construction Nominal Insulation
Thickness 		Nominal Shield
Cross Section 		Nominal Sheath
Thickness 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 1.5 2.5 1.4 10.0 170

1.5/3kV

Construction Nominal Insulation
Thickness 		Nominal Screen
Cross Section 		Nominal Sheath
Thickness 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 2.8 2.5 1.4 12.5 240

2.5/5kV

Construction Nominal Insulation
Thickness 		Nominal Shield
Cross Section 		Nominal Sheath
Thickness 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 3.0 4 1.4 13.0 250

3/6kV

Construction Nominal Insulation
Thickness 		Nominal Shield
Cross Section 		Nominal Sheath
Thickness 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 3.0 4 1.4 13.0 250
1×16 3.0 6 1.4 15.0 465

5/10kV

Construction Nominal Insulation
Thickness 		Nominal Screen
Cross Section 		Nominal Sheath
Thickness 		Nominal Overall
Diameter 		Nominal Weight
No. ×mm² mm mm² mm mm kg/km
1×6 3.8 6 1.4 16.5 360
1×10 3.8 6 1.4 17.0 390
