 400Hz Single Core Grounding Cable
Applications
Airport cables are designed to be used for grounding the aircraft in hangars or on passenger bridges,
connecting
aircraft and mobile refueling systems and provide an equipotential bonding.
Standards
VDE 0295

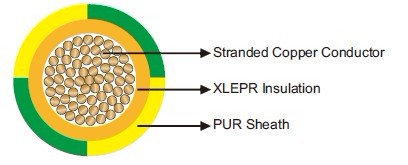

Construction
Conductor: Stranded copper conductor, Class
5 to VDE 0295/IEC 60228.
Insulation: XLEPR.
Outer Sheath: PUR.
Technical Data
Rated Voltage Uo/U (Um)
:
600/1000V
Operating Temperatures
:
-40℃~+90℃
Minimum Bending Radius :static: 6×OD; dynamic: 9×OD
Halogen Free :Yes
No Corrosive & Toxic Gases :Yes
Abrasion Resistant :Yes
Weather Resistant :Yes
Oil Resistant :Yes
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm² |
mm |
kg/km |
| 1×16 |
10.7 |
216 |
|
