Airport Cable | |||
Indoor Lighting, Socket & UPS Outlet Power Cables
FTX400 1RZ1-R (CU/XLPE/LSZH 600/1000V Multicore)
APPLICATION
Airport cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design to IEC 60502-1
FIRE PERFORMANCE
FlameRetardance (SingleVerticalWireTest) | EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
---|---|
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest) | EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1* |
NoCorrosive GasEmission | IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2* |
MinimumSmokeEmission | IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2* |
NoToxic Gases | NES02-713;NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
600/1000V

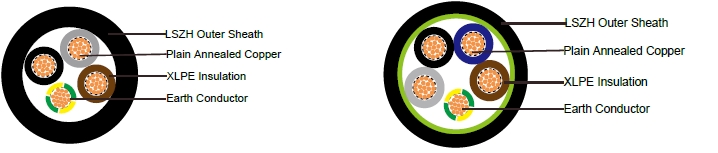

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.
COLOUR CODE
Insulation Colour as per BS7671
WithEarth Conductor | WithoutEarth Conductor | |
---|---|---|
2 Cores | - | Brown,Blue |
3 Cores | Yellow/Green,Brown,Blue | Brown,Gray, Black |
4 Cores | Yellow/Green,Brown,Gray, Black | Brown,Gray, Black,Blue |
5 Cores | Yellow/Green,Brown,Gray,Black,Blue | Brown,Gray, Black,Blue,Black |
Above5 Cores | Yellow/Green,BlackNumbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation: -30°C ~ 90°C
Temperature Range during Installation : -5°C ~ 50°C
Minimum Bending Radius: 6 x OD
Electrical PROPERTIES
DielectricTest: 3500 Vr.m.s.x 5’(core/core)
Insulation Resistance: 500 MΩ x km ( at 20°C )
Short circuit Temperature: 250°C ( up to5secs)
CONSTRUCTION PARAMETERS
Cable Code | Conductor |
Nominal Overall Diameter |
Approx. Weight | ||
---|---|---|---|---|---|
No. of CoreX Cross |
No./ |
Nominal |
|||
|
No.×mm2 | No./mm | mm |
mm |
mm |
2 CORES |
|||||
FTX400 1RZ1-R2G1.5 | 2x1.5 | 7/0.53 | 0.7 |
10.0 | 126 |
FTX400 1RZ1-R2G2.5 | 2x2.5 | 7/0.67 | 0.7 |
10.8 | 158 |
FTX400 1RZ1-R2G4 | 2x4 |
7/0.85 | 0.7 |
11.9 |
205 |
FTX400 1RZ1-R2G6 | 2x6 |
7/1.04 | 0.7 |
13.0 | 264 |
FTX400 1RZ1-R2G10 | 2x10 | 7/1.35 | 0.7 |
14.9 | 378 |
FTX400 1RZ1-R2G16 | 2x16 | 7/1.70 | 0.7 |
17.0 | 534 |
FTX400 1RZ1-R2G25 | 2x25 | 7/2.14 | 0.9 |
20.4 | 650 |
FTX400 1RZ1-R2G35 | 2x35 | 7/2.52 | 0.9 |
22.7 | 880 |
3 CORES |
|||||
FTX400 1RZ1-R3G1.5 | 3x1.5 | 7/0.53 | 0.7 |
10.5 | 145 |
FTX400 1RZ1-R3G2.5 | 3x2.5 | 7/0.67 | 0.7 |
11.4 |
185 |
FTX400 1RZ1-R3G4 | 3x4 |
7/0.85 | 0.7 |
12.5 | 247 |
FTX400 1RZ1-R3G6 | 3x6 |
7/1.04 | 0.7 |
13.8 | 323 |
FTX400 1RZ1-R3G10 | 3x10 | 7/1.35 | 0.7 |
15.8 | 474 |
FTX400 1RZ1-R3G16 | 3x16 | 7/1.70 | 0.7 |
18.0 | 682 |
FTX400 1RZ1-R3G25 | 3x25 | 7/2.14 | 0.9 |
21.7 | 910 |
FTX400 1RZ1-R3G35 | 3x35 | 7/2.52 | 0.9 |
24.0 | 1180 |
FTX400 1RZ1-R3G50 | 3x50(S) | 19/1.78 | 1.0 |
25.5 | 1600 |
FTX400 1RZ1-R3G70 | 3x70(S) | 19/2.14 | 1.1 |
29.0 | 2240 |
FTX400 1RZ1-R3G95 | 3x95(S) | 19/2.52 | 1.1 |
33.5 | 3050 |
FTX400 1RZ1-R3G120 | 3x120(S) | 37/2.03 | 1.2 |
37.5 | 3800 |
FTX400 1RZ1-R3G150 | 3x150(S) | 37/2.25 | 1.4 |
40.5 | 4640 |
FTX400 1RZ1-R3G185 | 3x185(S) | 37/2.52 | 1.6 |
45.0 | 5870 |
FTX400 1RZ1-R3G40 | 3x240(S) | 61/2.25 | 1.7 |
50.5 | 7670 |
FTX400 1RZ1-R3G300 | 3x300(S) | 61/2.52 | 1.8 |
57.0 | 9460 |
FTX400 1RZ1-R3G400 | 3x400(S) | 61/2.85 | 2.0 |
63.0 | 11945 |
3CORE + 1EARTHCONDUCTOR | |||||
FTX400 1RZ1-R3G16/6 | 3x16/6 | 7/1.70 | 0.7 |
16.5 | 698 |
FTX400 1RZ1-R3G16/10 | 3x16/10 | 7/1.70 | 0.7 |
18.85 | 793 |
FTX400 1RZ1-R3G25/6 | 3x25/6 | 7/2.14 | 0.9 |
21.7 | 956 |
FTX400 1RZ1-R3G25/10 | 3x25/10 | 7/2.14 | 0.9 |
22.1 | 1021 |
FTX400 1RZ1-R3G25/16 | 3x25/16 | 7/2.14 | 0.9 |
23.0 | 1070 |
FTX400 1RZ1-R3G35/10 | 3x35/10 | 19/1.53 | 0.9 |
22.9 | 1263 |
FTX400 1RZ1-R3G35/16 | 3x35/16 | 19/1.53 | 0.9 |
24.3 | 1349 |
FTX400 1RZ1-R3G35/25 | 3x35/25 | 19/1.53 | 0.9 |
25.2 | 1470 |
FTX400 1RZ1-R3G50/16 | 3x50/16 | 19/1.78 | 1.0 |
26.1 | 1769 |
FTX400 1RZ1-R3G50/25 | 3x50/25 | 19/1.78 | 1.0 |
27.3 | 1890 |
FTX400 1RZ1-R3G50/35 | 3x50/35 | 19/1.78 | 1.0 |
27.8 | 1995 |
FTX400 1RZ1-R3G70/25 | 3x70/25 | 19/2.14 | 1.1 |
30.2 | 2530 |
FTX400 1RZ1-R3G70/35 | 3x70/35 | 19/2.14 | 1.1 |
30.9 | 2660 |
FTX400 1RZ1-R3G70/50 | 3x70/50 | 19/2.14 | 1.1 |
31.5 | 2840 |
FTX400 1RZ1-R3G95/25 | 3x95/25 | 19/2.52 | 1.1 |
35.1 | 3340 |
FTX400 1RZ1-R3G95/35 | 3x95/35 | 19/2.52 | 1.1 |
36.0 | 3470 |
FTX400 1RZ1-R3G95/50 | 3x95/50 | 19/2.52 | 1.1 |
36.8 | 3650 |
FTX400 1RZ1-R3G95/70 | 3x95/70 | 19/2.52 | 1.1 |
36.9 | 3890 |
FTX400 1RZ1-R3G120/35 | 3x120/35 | 37/2.03 | 1.2 |
38.2 | 3920 |
FTX400 1RZ1-R3G120/50 | 3x120/50 | 37/2.03 | 1.2 |
39.1 | 4400 |
FTX400 1RZ1-R3G120/70 | 3x120/70 | 37/2.03 | 1.2 |
40.0 | 4610 |
FTX400 1RZ1-R3G120/95 | 3x120/95 | 37/2.03 | 1.2 |
41.2 | 4820 |
FTX400 1RZ1-R3G150/50 | 3x150/50 | 37/2.25 | 1.4 |
41.5 | 5240 |
FTX400 1RZ1-R3G150/70 | 3x150/70 | 37/2.25 | 1.4 |
42.3 | 5450 |
FTX400 1RZ1-R3G150/95 | 3x150/95 | 37/2.25 | 1.4 |
43.6 | 5660 |
FTX400 1RZ1-R3G150/120 | 3x150/120 | 37/2.25 | 1.4 |
44.8 | 6240 |
FTX400 1RZ1-R3G185/70 | 3x185/70 | 37/2.52 | 1.6 |
47.5 | 6680 |
FTX400 1RZ1-R3G185/95 | 3x185/95 | 37/2.52 | 1.6 |
47.9 | 6990 |
FTX400 1RZ1-R3G185/120 | 3x185/120 | 37/2.52 | 1.6 |
48.5 | 7395 |
FTX400 1RZ1-R3G185/150 | 3x185/150 | 37/2.52 | 1.6 |
49.2 | 7580 |
FTX400 1RZ1-R3G240/95 | 3x240/95 | 61/2.25 | 1.7 |
53.4 | 8690 |
FTX400 1RZ1-R3G240/120 | 3x240/120 | 61/2.25 | 1.7 |
54.9 | 9095 |
FTX400 1RZ1-R3G240/150 | 3x240/150 | 61/2.25 | 1.7 |
55.6 | 9380 |
FTX400 1RZ1-R3G240/185 | 3x240/185 | 61/2.25 | 1.7 |
56.8 | 9687 |
FTX400 1RZ1-R3G300/120 | 3x300/120 | 61/2.52 | 1.8 |
58.1 | 10480 |
FTX400 1RZ1-R3G300/150 | 3x300/150 | 61/2.52 | 1.8 |
57.3 | 11170 |
FTX400 1RZ1-R3G300/185 | 3x300/185 | 61/2.52 | 1.8 |
58.7 | 11480 |
FTX400 1RZ1-R3G300/240 | 3x300/240 | 61/2.52 | 1.8 |
62.4 | 11290 |
4 CORES |
|||||
FTX400 1RZ1-R4G1.5 | 4x1.5 | 7/0.53 | 0.7 |
11.3 |
169 |
FTX400 1RZ1-R4G2.5 | 4x2.5 | 7/0.67 | 0.7 |
12.3 | 220 |
FTX400 1RZ1-R4G4 | 4x4 |
7/0.85 | 0.7 |
13.6 | 297 |
FTX400 1RZ1-R4G6 | 4x6 |
7/1.04 | 0.7 |
15.0 | 392 |
FTX400 1RZ1-R4G10 | 4x10 | 7/1.35 | 0.7 |
17.2 | 585 |
FTX400 1RZ1-R4G16 | 4x16 | 7/1.70 | 0.7 |
19.7 | 851 |
FTX400 1RZ1-R4G25 | 4x25 | 7/2.14 | 0.9 |
23.9 | 1200 |
FTX400 1RZ1-R4G35 | 4x35(S) | 7/2.52 | 0.9 |
25.0 | 1600 |
FTX400 1RZ1-R4G50 | 4x50(S) | 19/1.78 | 1.0 |
28.0 | 2200 |
FTX400 1RZ1-R4G70 | 4x70(S) | 19/2.14 | 1.1 |
32.0 | 3050 |
FTX400 1RZ1-R4G95 | 4x95(S) | 19/2.52 | 1.1 |
37.0 | 4070 |
FTX400 1RZ1-R4G120 | 4x120(S) | 37/2.03 | 1.2 |
42.0 | 5915 |
FTX400 1RZ1-R4G150 | 4x150(S) | 37/2.25 | 1.4 |
46.0 | 6350 |
FTX400 1RZ1-R4G185 | 4x185(S) | 37/2.52 | 1.6 |
50.0 | 7890 |
FTX400 1RZ1-R4G240 | 4x240(S) | 61/2.25 | 1.7 |
57.0 | 10400 |
FTX400 1RZ1-R4G300 | 4x300(S) | 61/2.52 | 1.8 |
63.0 | 12810 |
FTX400 1RZ1-R4G400 | 4x400(S) | 61/2.85 | 2.0 |
71.0 | 15869 |
FTX400 1RZ1-R4G500 | 4x500(S) | 61/3.20 | 2.2 |
78.0 | 20300 |
4CORE + 1EARTHCONDUCTOR | |||||
FTX400 1RZ1-R4G16/6 | 4x16/6 | 7/1.70 | 0.7 |
19 |
654 |
FTX400 1RZ1-R4G16/10 | 4x16/10 | 7/1.70 | 0.7 |
21.9 | 962 |
FTX400 1RZ1-R4G25/6 | 4x25/10 | 7/2.14 | 0.7 |
25.3 | 1256 |
FTX400 1RZ1-R4G25/10 | 4x25/10 | 7/2.14 | 0.7 |
26.6 | 1311 |
FTX400 1RZ1-R4G25/16 | 4x25/16 | 7/2.14 | 0.7 |
27.3 | 1369 |
FTX400 1RZ1-R4G35/10 | 4x35/10 | 19/1.53 | 0.9 |
26.8 | 1658 |
FTX400 1RZ1-R4G35/16 | 4x35/16 | 19/1.53 | 0.9 |
27.6 | 1769 |
FTX400 1RZ1-R4G35/25 | 4x35/25 | 19/1.53 | 0.9 |
28.4 | 1890 |
FTX400 1RZ1-R4G50/16 | 4x50/16 | 19/1.78 | 1.0 |
29.4 | 2369 |
FTX400 1RZ1-R4G50/25 | 4x50/25 | 19/1.78 | 1.0 |
31.6 | 2490 |
FTX400 1RZ1-R4G50/35 | 4x50/35 | 19/1.78 | 1.0 |
33.2 | 2599 |
FTX400 1RZ1-R4G70/25 | 4x70/25 | 19/2.14 | 1.1 |
34.2 | 3340 |
FTX400 1RZ1-R4G70/35 | 4x70/35 | 19/2.14 | 1.1 |
35.6 | 3470 |
FTX400 1RZ1-R4G70/50 | 4x70/50 | 19/2.14 | 1.1 |
37.8 | 3650 |
FTX400 1RZ1-R4G95/25 | 4x95/25 | 19/2.52 | 1.1 |
42.6 | 4360 |
FTX400 1RZ1-R4G95/35 | 4x95/35 | 19/2.52 | 1.1 |
43.3 | 4510 |
FTX400 1RZ1-R4G95/50 | 4x95/50 | 19/2.52 | 1.1 |
44.1 | 4670 |
FTX400 1RZ1-R4G95/70 | 4x95/70 | 19/2.52 | 1.1 |
45.3 | 4783 |
FTX400 1RZ1-R4G120/35 | 4x120/35 | 37/2.03 | 1.2 |
42.6 | 6335 |
FTX400 1RZ1-R4G120/50 | 4x120/50 | 37/2.03 | 1.2 |
43.8 | 6515 |
FTX400 1RZ1-R4G120/70 | 4x120/70 | 37/2.03 | 1.2 |
45.9 | 6725 |
FTX400 1RZ1-R4G120/95 | 4x120/95 | 37/2.03 | 1.2 |
46.4 | 6920 |
FTX400 1RZ1-R4G150/50 | 4x150/50 | 37/2.25 | 1.4 |
47.3 | 6950 |
FTX400 1RZ1-R4G150/70 | 4x150/70 | 37/2.25 | 1.4 |
48.5 | 7160 |
FTX400 1RZ1-R4G150/95 | 4x150/95 | 37/2.25 | 1.4 |
50.2 | 7370 |
FTX400 1RZ1-R4G150/120 | 4x150/120 | 37/2.25 | 1.4 |
53.7 | 7965 |
FTX400 1RZ1-R4G185/70 | 4x185/70 | 37/2.52 | 1.6 |
52.4 | 8490 |
FTX400 1RZ1-R4G185/95 | 4x185/95 | 37/2.52 | 1.6 |
53.9 | 8700 |
FTX400 1RZ1-R4G185/120 | 4x185/120 | 37/2.52 | 1.6 |
55.6 | 8910 |
FTX400 1RZ1-R4G185/150 | 4x185/150 | 37/2.52 | 1.6 |
59.4 | 9260 |
FTX400 1RZ1-R4G240/95 | 4x240/95 | 61/2.25 | 1.7 |
61.9 | 11210 |
FTX400 1RZ1-R4G240/120 | 4x240/120 | 61/2.25 | 1.7 |
63.4 | 11420 |
FTX400 1RZ1-R4G240/150 | 4x240/150 | 61/2.25 | 1.7 |
63.9 | 12010 |
FTX400 1RZ1-R4G240/185 | 4x240/185 | 61/2.25 | 1.7 |
64.3 | 12090 |
FTX400 1RZ1-R4G300/120 | 4x300/120 | 61/2.52 | 1.8 |
64.0 | 12110 |
FTX400 1RZ1-R4G300/150 | 4x300/150 | 61/2.52 | 1.8 |
66.1 | 13830 |
FTX400 1RZ1-R4G300/185 | 4x300/185 | 61/2.52 | 1.8 |
71.5 | 14520 |
FTX400 1RZ1-R4G300/240 | 4x300/240 | 61/2.52 | 1.8 |
72.0 | 14830 |
5 CORES |
|||||
FTX400 1RZ1-R5G1.5 | 5x1.5 | 7/0.53 | 0.7 |
13.7 | 205 |
FTX400 1RZ1-R5G2.5 | 5x2.5 | 7/0.85 | 0.7 |
14.9 | 265 |
FTX400 1RZ1-R5G4 | 5x4 |
7/0.85 | 0.7 |
16.3 | 360 |
FTX400 1RZ1-R5G6 | 5x6 |
7/1.04 | 0.7 |
18.2 | 478 |
FTX400 1RZ1-R5G10 | 5x10 | 7/1.04 | 0.7 |
20.8 | 720 |
FTX400 1RZ1-R5G16 | 5x16 | 7/1.04 | 0.7 |
24.2 | 1050 |
FTX400 1RZ1-R5G25 | 5x25 | 7/1.04 | 0.7 |
29.4 | 1485 |
FTX400 1RZ1-R5G35 | 5x35(S) | 7/2.52 | 0.9 |
30.3 | 1940 |
FTX400 1RZ1-R5G50 | 5x50(S) | 19/1.78 | 1.0 |
34 |
2667 |
FTX400 1RZ1-R5G70 | 5x70(S) | 19/2.14 | 1.1 |
38.5 | 3698 |
FTX400 1RZ1-R5G95 | 5x95(S) | 19/2.52 | 1.1 |
44.6 | 4934 |
FTX400 1RZ1-R5G120 | 5x120(S) | 37/2.03 | 1.2 |
45.8 | 7171 |
FTX400 1RZ1-R5G150 | 5x150(S) | 37/2.25 | 1.4 |
55.6 | 7699 |
FTX400 1RZ1-R5G185 | 5x185(S) | 37/2.52 | 1.6 |
60.4 | 9566 |
FTX400 1RZ1-R5G240 | 5x240(S) | 61/2.25 | 1.7 |
69.1 | 12610 |
FTX400 1RZ1-R5G300 | 5x300(S) | 61/2.52 | 1.8 |
76.4 | 15532 |
FTX400 1RZ1-R5G400 | 5x400(S) | 61/2.85 | 2.0 |
86.1 | 19241 |
FTX400 1RZ1-R5G500 | 5x500(S) | 61/3.20 | 2.2 |
94.4 | 24613 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor |
Reference in conduitin thermally insulatingwalletc) |
Reference Method3 (enclosed inconduit ona wallorin trunkingetc) |
Reference Method1 (clipped direct) |
Reference |
Reference Method 12 (freeair) |
||
---|---|---|---|---|---|---|---|
Horizontalflat spaced |
Verticalflat spaced |
Trefoil |
2 a.c.ord.c. |
3 or 4cables, 3-phasea.c. |
2 a.c.ord.c |
3 or 4cables, 3-phasea.c. |
2cables, single- phase |
3 or 4cables, 3-phase |
2cables, |
3 or 4cables, 3-phase |
2cables, single- phase |
2cables, single- phase |
3cables, trefoil |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 | A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18 |
17 |
22 | 19 | 25 |
23 |
- |
- |
- |
- |
- |
2.5 |
24 |
23 |
30 | 26 | 34 |
31 |
- |
- |
- |
- |
- |
4 |
33 |
30 |
40 | 35 | 46 |
41 |
- |
- |
- |
- |
- |
6 |
43 |
39 |
51 | 45 | 59 |
54 |
- |
- |
- |
- |
- |
10 |
58 |
53 |
71 | 63 | 81 |
74 |
- |
- |
- |
- |
- |
16 |
76 |
70 |
95 | 85 | 109 | 99 |
- |
- |
- |
- |
- |
25 |
100 | 91 |
126 | 111 | 143 | 130 | 158 | 140 | 183 | 163 | 138 |
35 |
125 | 111 | 156 | 138 | 176 | 161 | 195 | 176 | 226 | 203 | 171 |
50 |
149 | 135 | 189 | 168 | 228 | 209 | 293 | 215 | 274 | 246 | 209 |
70 |
189 | 170 | 240 | 214 | 293 | 268 | 308 | 279 | 351 | 318 | 270 |
95 |
228 | 205 | 290 | 259 | 355 | 326 | 375 | 341 | 426 | 389 | 330 |
120 | 263 | 235 | 336 | 299 | 413 | 379 | 436 | 398 | 495 | 453 | 385 |
150 | 300 | 270 | 375 | 328 | 476 | 436 | 505 | 461 | 570 | 524 | 445 |
185 | 341 | 306 | 426 | 370 | 545 | 500 | 579 | 530 | 651 | 600 | 511 |
240 | 400 | 358 | 500 | 433 | 644 | 590 | 686 | 630 | 769 | 711 | 606 |
300 | 459 | 410 | 573 | 493 | 743 | 681 | 794 | 730 | 886 | 824 | 701 |
400 | - |
- |
684 | 584 | 868 | 793 | 915 | 849 | 1065 | 994 | 820 |
500 | - |
- |
783 | 666 | 990 | 904 | 1044 | 973 | 1228 | 1150 | 936 |
Size of conductor |
2 cables d.c. |
2cables, single-phasea.c. |
3or 4cables,3-phase a.c. | |||
---|---|---|---|---|---|---|
Ref. |
Ref.Methods1 and11 |
Ref.Methods3 |
Ref. Methods1, 11 and12 (intrefoil) |
Ref. Methods1 and11 (Flat and touching) |
||
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
1.5 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
16 |
16 |
16 |
16 |
||||||||||
4 |
33 |
12 |
10 |
10 |
10 |
10 |
||||||||||
6 |
7.8 | 7.9 |
6.8 |
6.8 |
6.8 |
6.8 |
||||||||||
10 |
4.7 | 4.7 |
4.7 |
4 |
4 |
4 |
||||||||||
16 |
2.9 | 2.9 |
2.9 |
2.5 |
2.5 |
2.5 |
||||||||||
|
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
25 |
1.85 | 1.85 | 0.31 | 1.90 | 1.85 | 0.190 | 1.85 | 1.60 | 0.27 | 1.65 | 1.600 | 0.165 | 1.600 | 1.600 | 0.190 | 1.600 |
35 |
1.35 | 1.35 | 0.29 | 1.35 | 1.35 | 0.180 | 1.35 | 1.15 | 0.25 | 1.15 | 1.150 | 0.155 | 1.50 | 1.150 | 0.180 | 1.150 |
50 |
0.99 | 1.00 | 0.29 | 1.05 | 0.99 | 0.180 | 1.00 | 0.87 | 0.25 | 0.90 | 0.860 | 0.155 | 0.870 | 0.860 | 0.180 | 0.870 |
70 |
0.68 | 0.70 | 0.28 | 0.75 | 0.68 | 0.175 | 0.71 | 0.60 | 0.24 | 0.65 | 0.590 | 0.150 | 0.610 | 0.590 | 0.175 | 0.620 |
95 |
0.49 | 0.51 | 0.27 | 0.58 | 0.49 | 0.170 | 0.52 | 0.44 | 0.23 | 0.50 | 0.430 | 0.145 | 0.450 | 0.430 | 0.170 | 0.460 |
120 | 0.39 | 0.41 | 0.26 | 0.48 | 0.39 | 0.165 | 0.43 | 0.35 | 0.23 | 0.42 | 0.340 | 0.140 | 0.370 | 0.340 | 0.165 | 0.380 |
150 | 0.32 | 0.33 | 0.26 | 0.43 | 0.32 | 0.165 | 0.36 | 0.29 | 0.23 | 0.37 | 0.280 | 0.140 | 0.310 | 0.280 | 0.165 | 0.320 |
185 | 0.25 | 0.27 | 0.26 | 0.37 | 0.26 | 0.165 | 0.30 | 0.23 | 0.23 | 0.32 | 0.220 | 0.140 | 0.260 | 0.220 | 0.165 | 0.280 |
240 | 0.19 | 0.21 | 0.26 | 0.33 | 0.20 | 0.160 | 0.25 | 0.185 | 0.22 | 0.29 | 0.170 | 0.140 | 0.220 | 0.170 | 0.165 | 0.240 |
300 | 0.155 | 0.175 | 0.25 | 0.31 | 0.16 | 0.160 | 0.22 | 0.150 | 0.22 | 0.27 | 0.140 | 0.140 | 0.195 | 0.135 | 0.160 | 0.210 |
400 | 0.12 | 0.140 | 0.25 | 0.29 | 0.13 | 0.155 | 0.20 | 0.125 | 0.22 | 0.25 | 0.110 | 0.135 | 0.175 | 0.110 | 0.160 | 0.195 |
500 | 0.093 | 0.120 | 0.25 | 0.28 | 0.105 | 0.155 | 0.185 | 0.100 | 0.22 | 0.24 | 0.090 | 0.135 | 0.160 | 0.088 | 0.160 | 0.180 |
r = conductor resistance at operating temperature
x = reactance
z = impedance
