FFX300 1mRZ1MZ1-R (CU/MGT+XLPE/LSZH/AWA/LSZH 600/1000V Single Core)

600/1000V Mica/XLPE Insulated, LSZH Sheathed, Armoured Power Cables (Single Core)

Airprot cables is designed for areas where the integrity of the electrical properties circuit is critical in maintaining

power supply. Applications can be found in emergency lightings, control and power circuits, power stations, fire

alarm systems, underground tunnels, communications systems, sewage treatment plants, lifts, escalators, and

high-rise buildings.

Basic design to BS 7846

Circuit Integrity	IEC60331-21;BS6387 CWZ;DINVDE0472-814(FE180); CEI20-36/2-1; SS229-1;NBNC30-004 (cat.F3);NF C32-070-2.3(CR1)
SystemCircuitIntegrity	DIN4102-12, E30depending on lay system
Flame Retardance (SingleVerticalWireTest)	EN60332-1-2; IEC60332-1-2; BSEN60332-1-2;VDE0482-332-1 ; NBNC30-004 (cat.F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN50265-2-1;DIN VDE 0482-265-2-1
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)	EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBNC30-004(cat.F2);NFC32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*
NoCorrosive GasEmission	IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*
MinimumSmokeEmission	IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2;BS 7622-1&2
NoToxic Gases	NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.

600/1000 V

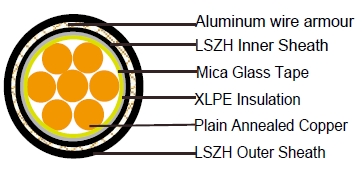

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.

Insulation: Mica glass tape covered by extruded cross-linked XLPE compound

Inner Sheath :Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1

Armouring : Aluminum wire armour

Outer Sheath:Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1

Insulation Colour : Natural

Sheath Colour: Black (other colors upon request)

Temperature Range During Operation: -30°C ~ 90°C

Temperature Range during Installation : -5°C ~ 50°C

Minimum Bending Radius: 8 x OD

Dielectric Test: 3500 Vr.m.s.x 5’(core/core)

Insulation Resistance:1000 MΩ x km ( at20°C )

Short Circuit Temperature:250°C ( up to5secs)

Cable Code	Conductor				Approx. Overall Diameter	Approx. Weight
Cable Code	No.of Core ×Cross Section	No./ Nominal Diameter of Strands	Dia.of Conductor	Nominal Insulation Thickness	Approx. Overall Diameter	Approx. Weight
	mm2	No./mm	mm	mm	mm	kg/km
FFX300 1mRZ1MZ1-R1G1.5	1×1.5	7/0.53	1.59	0.7	-	-
FFX300 1mRZ1MZ1-R1G2.5	1×2.5	7/0.67	2.01	0.7	-	-
FFX300 1mRZ1MZ1-R1G4	1×4	7/0.85	2.55	0.7	-	-
FFX300 1mRZ1MZ1-R1G6	1×6	7/1.04	3.12	0.7	-	-
FFX300 1mRZ1MZ1-R1G10	1×10	7/1.35	4.05	0.7	-	-
FFX300 1mRZ1MZ1-R1G16	1×16	7/1.70	5.1	0.7	-	-
FFX300 1mRZ1MZ1-R1G25	1×25	7/2.14	6.42	0.9	-	-
FFX300 1mRZ1MZ1-R1G35	1×35	19/1.53	7.65	0.9	-	-
FFX300 1mRZ1MZ1-R1G50	1×50	19/1.78	8.9	1	18.5	780
FFX300 1mRZ1MZ1-R1G70	1×70	19/2.14	10.7	1.1	20.5	1010
FFX300 1mRZ1MZ1-R1G95	1×95	19/2.52	12.6	1.1	23	1320
FFX300 1mRZ1MZ1-R1G120	1×120	37/2.03	14.21	1.2	24.5	1610
FFX300 1mRZ1MZ1-R1G150	1×150	37/2.25	15.75	1.4	27	2010
FFX300 1mRZ1MZ1-R1G185	1×185	37.2.52	17.64	1.6	29.5	2440
FFX300 1mRZ1MZ1-R1G240	1×240	61/2.25	20.25	1.7	34.5	3060
FFX300 1mRZ1MZ1-R1G300	1×300	61/2.52	22.68	1.8	36.9	3690
FFX300 1mRZ1MZ1-R1G400	1×400	65/2.85	25.65	2	41.5	4780
FFX300 1mRZ1MZ1-R1G500	1×500	61/3.20	28.8	2.2	45.5	5970
FFX300 1mRZ1MZ1-R1G630	1×630	127/2.52	32.76	2.4	50.5	7530
FFX300 1mRZ1MZ1-R1G800	1×800	127/2.85	37.05	2.6	56.8	9680
FFX300 1mRZ1MZ1-R1G1000	1×1000	127/3.20	41.6	2.8	61.5	11980

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Nominal Cross Section Area	Reference Method1 (clipped direct)		Reference Method11(on perforated cabletray)		Reference Method 12(free air)	Insingle- wayducts		Laiddirectin ground
Nominal Cross Section Area	2cables singlephase a.c. or d.c.flat and touching	3 or 4cables 3-phase a.c. flat andtouching	2cables singlephase a.c. or d.c.flat and touching	3 or 4cables 3-phase a.c. flat and touching	3cables 3-phase a.c.trefoil touching	2cables singlephase a.c. ord.c. ducts touching	3cables 3-phase a.c.trefoil touching	2cables singlephase a.c. ord.c. touching	3cables 3-phase a.c.trefoil touching
1	2	3	4	5	6	7	8	9	10
mm2	A	A	A	A	A	A	A	A	A
50	237	220	253	232	222	255	235	275	235
70	303	277	322	293	285	310	280	340	290
95	367	333	389	352	346	365	330	405	345
120	425	383	449	405	402	410	370	460	389
150	488	437	516	462	463	445	405	510	435
185	557	496	587	524	529	485	440	580	490
240	656	579	689	612	625	550	500	670	560
300	755	662	792	700	720	610	550	750	630
400	853	717	899	767	815	640	580	830	700
500	962	791	1016	851	918	690	620	910	770
630	1082	861	1146	935	1027	750	670	1000	840
800	1170	904	1246	987	1119	828	735	1117	931
1000	1261	961	1345	1055	1214	919	811	1254	1038

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 1	2 cables d.c. 2	2cables single- phase a.c.			3or 4cables three- phasea.c.						2cables single phase a.c.		3 or 4cables,3-phasea.c. touching
		Reference Method1& 11(touching)			Reference Method 1,11 & 12 (intrefoiltouching)			Reference Method1&11 (Flat touching)			Inducts 6	Inground 7	Inducts 8	Inground 9
		3			4			5			Inducts 6	Inground 7	Inducts 8	Inground 9
mm2	mV/A/m	mV/A/m			mV/A/m			mV/A/m			mV/A/m	mV/A/m	mV/A/m	mV/A/m
		r	x	z	r	x	z	r	x	z
50	0.98	0.99	0.21	1	0.86	0.18	0.87	0.84	0.25	0.88	1.1	0.99	0.93	0.86
70	0.67	0.68	0.2	0.71	0.59	0.17	0.62	0.6	0.25	0.65	0.8	0.7	0.7	0.61
95	0.49	0.51	0.195	0.55	0.44	0.17	0.47	0.46	0.24	0.52	0.65	0.53	0.56	0.46
120	0.39	0.41	0.19	0.45	0.35	0.165	0.39	0.38	0.24	0.44	0.55	0.43	0.48	0.37
150	0.31	0.33	0.185	0.38	0.29	0.16	0.33	0.31	0.23	0.39	0.5	0.37	0.43	0.32
185	0.25	0.27	0.185	0.33	0.23	0.16	0.28	0.26	0.23	0.34	0.45	0.31	0.39	0.27
240	0.195	0.21	0.18	0.28	0.18	0.155	0.24	0.21	0.22	0.3	0.4	0.26	0.35	0.23
300	0.155	0.17	0.175	0.25	0.145	0.15	0.21	0.17	0.22	0.28	0.37	0.24	0.32	0.21
400	0.115	0.145	0.17	0.22	0.125	0.15	0.195	0.16	0.21	0.27	0.35	0.21	0.3	0.19
500	0.093	0.125	0.17	0.21	0.105	0.145	0.18	0.145	0.2	0.25	0.33	0.2	0.28	0.18
630	0.073	0.105	0.165	0.195	0.092	0.145	0.17	0.135	0.195	0.24	0.3	0.19	0.26	0.17
800	0.056	0.09	0.16	0.19	0.086	0.14	0.165	0.13	0.18	0.23	0.28	0.18	0.24	0.16
1000	0.045	0.092	0.155	0.18	0.08	0.135	0.155	0.125	0.17	0.21	0.26	0.17	0.22	0.15

Note: r = conductor resistance at operating temperature
x = reactance
z = impedance
