Airport Cable

  2491X to BS 6004 Cables

450/750V PVC Insulated, PVC Sheathed Controlling Cables (2 core & 6 core)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

APPLICATION

Airprot cables are multicore stranded flexible cables sheathed with thermoplastic PVC compound. The cables are

designed specially for fire alarm systems where the integrity of the electrical circuit is critical in maintaining

power supply. Applications can be found in emergency lightings, control and power circuits, power stations, fire

alarm systems, underground.

STANDARDS

Basic design to BS 6004, BS6500

FIRE PERFORMANCE

FlameRetardance (SingleVerticalWireTest)** EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note:
Asterisk * denotes superseded standard

Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

450/750V

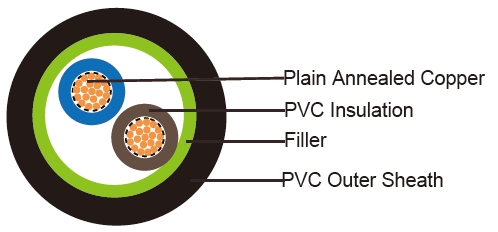

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5

Insulation: PVC insulation type TI1 to BS 7655

Filler, binder (if any): PP, PET

Outer Sheath: PVC sheath type T6 to BS 7655 COLOUR CODE

Insulation Colour as per BS7671

  with earth conductor without earth conductor
2Cores - Brown,Blue
3Cores Yellow/Green,Brown,Blue Brown,Gray,Black
4Cores Yellow/Green,Brown,Gray,Black Brown,Gray,Black,Blue
5Cores Yellow/Green,Brown,Gray,Black,Blue Brown,Gray,Black,Blue,Black
above 5 Cores Yellow/Green,BlackNumbers Black Numbers

Outer sheath: Black or as order

Physical AND THERMAL PROPERTIES

Operating temperature: -15º C to +70º C

Short circuit temperature: +160º C

Minimum bending radius: 4x Overall Diameter

Insulation resistance: 20 MΩxkm

CONSTRUCTION PARAMETERS

Conductor fGD20007VV-f
No.of
CoreXCross
Section		 No./
Nomina
lDiameter
of
Strands		 Conductor
Diameter		 Nominal
Insulation Thickness		 Nominal
Sheath Thickness		 Nominal
Overall Diameter		 Max.DC resistance ofconductor @20°C Approx. Weight
Noxmm2 No./mm mm mm mm mm Ω/km kg/km
2x1.0 32/0.20 1.32 0.6 0.9 7.0 18.1 66
6x1.0 32/0.20 1.32 0.6 1.0 10..2 18.1 159

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Currnt-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Method4
(enclosed inconduit in thermally
insulating
walletc)

Reference
Method3 (enclosed inconduit ona wallorin

trunkingetc)

 Reference
Method1
(clipped direct)

Reference
Method11
(onaperforated cabletray,
horizontalor
vertical)

 Reference
Method 12
(freeair)

Horizontal
flat spaced

Vertical
flat spaced

     Trefoil
2cables, single- phase
a.c.ord.c. 		3 or
cables, 3-phasea.c. 		2
cables, single- phase
a.c.ord.c 		3 or 4cables, 3-phasea.c. 2cables, single- phase
a.c.or
d.c. flat
and
touching 		3 or 4cables,
3-phase
a.c. flat
and
touching or trefoil 		2cables,
single- phase
a.c.or
d.c.orflat
and
touching 		3 or 4cables,
3-phase
a.c. flat
and
touching or trefoil 		2cables, single- phase
a.c.ord.c.or 3cables
three phase 		2cables, single- phase
a.c.ord.c
.or
3cables three phase 		3cables,
trefoil 3-phasea.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.0 13 - - - 15 - - - - - -
Voltage Drop (Per Amp Per Meter)
Nominal
Cross
Section Area		 2cables d.c. 2cables,
single-
phasea.c.		 3or
4cables,
3-phase a.c.
Ref.Methods3 and 4 (enclosed
inconduitetc ,inoron a wall)		 Ref.Methods1 and11
(clipped
director ontray
stouching)		 Ref.
Methods3 and 4 (enclosed
inconduitetc,
inoron a wall)		 Ref.Methods1, Ref.
Methods
1and11
11 and12 (intrefoil) (Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.0 46 46 - - - -
