2491X to BS 6004 Cables

450/750V PVC Insulated, PVC Sheathed Open-door Button Cables (2 core)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

Airprot cables are mainly used in open-door button, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings. The cables can be offered with the ability to

restrict the propagation of the flame in the event of a fire.

Basic design to BS 6004, BS6500

Flame Retardance (SingleVerticalWireTest)**	EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)**	EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBNC30-004(cat.F2);NFC32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note:
Asterisk * denotes superseded standard

Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

450/750V

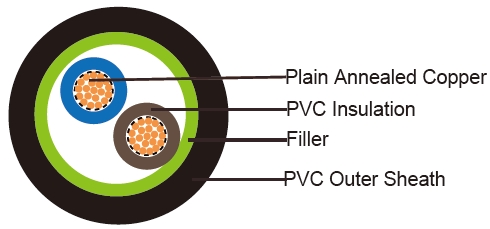

Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5

Insulation: PVC insulation type TI1 to BS 7655

Filler, binder (if any): PP, PET

Outer Sheath: PVC sheath type T6 to BS 7655

Insulation Colour as per BS7671

	withearth conductor	withoutearth conductor
2Cores	-	Brown,Blue
3Cores	Yellow/Green,Brown,Blue	Brown,Gray,Black
4Cores	Yellow/Green,Brown,Gray,Black	Brown,Gray,Black,Blue
5Cores	Yellow/Green,Brown,Gray,Black,Blue	Brown,Gray,Black,Blue,Black
above 5 Cores	Yellow/Green,BlackNumbers	Black Numbers

Outer sheath: Black or as order

Operating temperature: -15º C to +70º C

Short circuit temperature: +160º C

Minimum bending radius: 4x Overall Diameter

Insulation resistance: 20 MΩxkm

Conductor			fGD20007VV-f
No.of CoreX Cross Section	No./ Nomina l Diameter of Strands	Conductor Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Max.DC resistance ofconductor @20°C	Approx. Weight
Noxmm2	No./mm	mm	mm	mm	mm	Ω/km	kg/km
2x1.0	32/0.20	1.32	0.6	0.9	7.0	18.1	66

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Conductor cross- sectional area	Reference Method4(enclosed inconduit in thermallyinsulatingwalletc)	Reference Method3 (enclosed inconduit ona wallorintrunkingetc)	Reference Method1 (clipped direct)	Reference Method11 (onaperforated cabletray, horizontalor vertical)	Reference Method 12 (freeair)
					Horizontal flat spaced	Vertical flat spaced	Trefoil

	2 cables, single- phase a.c.ord.c.	3 or 4cables, 3-phasea.c.	2 cables, single- phase a.c.ord.c	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.or d.c. flat andtouching	3 or 4cables, 3-phase a.c. flat andtouching or trefoil	2 cables, single- phase a.c.or d.c.orflat and touching	3 or 4cables, 3-phase a.c. flat andtouching or trefoil	2cables, single- phase a.c.ord.c.or 3cablesthree phase	2cables, single- phase a.c.ord.c.or 3 cables three phase	3cables, trefoil 3-phasea.c.
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.0	13	-	-	-	15	-	-	-	-	-	-

Voltage Drop (Per Amp Per Meter)

Nominal Cross ection Area	2cables d.c.	2cables, single-phasea.c.		3or 4cables,3-phase a.c.
		Ref.Methods3 and 4 (enclose dinconduitetc, inoron a wall)	Ref.Methods1 and11(clippeddirector ontraystouching)	Ref.Methods3 and 4 (enclosedinconduitetc ,inoron a wall)	Ref.Methods1,	Ref.Methods1and11
		Ref.Methods3 and 4 (enclose dinconduitetc, inoron a wall)	Ref.Methods1 and11(clippeddirector ontraystouching)	Ref.Methods3 and 4 (enclosedinconduitetc ,inoron a wall)	11 and12 (intrefoil)	(Flat and touching)
1	2	3	4	5	6	7
mm2	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m
1.0	46	46	-	-	-	-

Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
