450/750V PVC Insulated, PVC Sheathed Power Cables (2 core & 3 core)

FGD200 07VV-F (CU/PVC/PVC 450/750V Class 5)

APPLICATION

Airprot cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings. The cables can be offered with the ability to

restrict the propagation of the flame in the event of a fire.

STANDARDS

Basic design to BS 6004, BS6500

FIRE PERFORMANCE

FlameRetardance (SingleVerticalWireTest)**	EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)**	EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note:

Asterisk * denotes superseded standard

Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

450/750V

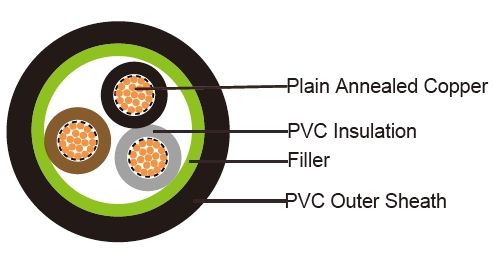

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to BS 6360 Class 5

Insulation: PVC insulation type TI1 to BS 7655

Filler, binder (if any): PP, PET

Outer Sheath: PVC sheath type T6 to BS 7655

COLOUR CODE

Insulation Colour as per BS7671

	withearth conductor	withoutearth conductor
2Cores	-	Brown,Blue
3Cores	Yellow/Green,Brown,Blue	Brown,Gray,Black
4Cores	Yellow/Green,Brown,Gray,Black	Brown,Gray,Black,Blue
5Cores	Yellow/Green,Brown,Gray,Black,Blue	Brown,Gray,Black,Blue,Black
above 5 Cores	Yellow/Green,BlackNumbers	Black Numbers

Outer sheath: Black or as order

Physical AND THERMAL PROPERTIES

Operating temperature: -15º C to +70º C

Short circuit temperature: +160º C

Minimum bending radius: 4x Overall Diameter

Insulation resistance: 20 MΩxkm

CONSTRUCTION PARAMETERS

Conductor			fGD20007VV-f
No.of CoreXCross Section	No./ Nominal Diameterof Strands	Conductor Diameter	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Max.DC resistance ofconductor @20°C	Approx. Weight
Noxmm2	No./mm	mm	mm	mm	mm	Ω/km	kg/km
2x1.5	30/0.25	1.6	0.7	0.9	9.3	12.1	108
3x2.5	50/0.25	2.0	0.8	1.2	10.8	7.41	179

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor
cross- sectional area

Reference Method4
(enclosed inconduit in thermally
insulating
walletc)

Reference
Method3 (enclosed inconduit ona wallorin trunkingetc)

Reference
Method1
(clipped direct)

Reference
Method11
(onaperforated cabletray,
horizontalorvertical)

Reference
Method 12
(freeair)

Horizontal
flat spaced

Vertical
flat spaced

Trefoil

	2cables, single- phase a.c.ord.c.	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.ord.c	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.or d.c. flat andtouching	3 or 4cables, 3-phase a.c. flat andtouching or trefoil	2 cables, single- phase a.c.or d.c.orflat and touching	3 or 4cables, 3-phase a.c. flat andtouching or trefoil	2cables, single- phase a.c.ord.c.or 3cablesthree phase	2cables, single- phase a.c.ord.c.or 3 cables three phase	3 cables, trefoil 3- phasea.c.


1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	18	17	22	19	25	23	-	-	-	-	-
2.5	24	23	30	26	34	31	-	-	-	-	-

Voltage Drop(PerAmp PerMeter)

Nominal CrossSection Area	2cables d.c.	2cables,single-phasea.c.		3or 4cables,3-phase a.c.
		Ref.Methods3 and 4 (enclosed inconduitetc, inoron a wall)	Ref.Methods1 and11(clipped director ontray stouching)	Ref.Methods3 and 4 (enclosed inconduitetc ,inoron a wall)	Ref.Methods1,	Ref.Methods1and11
		Ref.Methods3 and 4 (enclosed inconduitetc, inoron a wall)	Ref.Methods1 and11(clipped director ontray stouching)	Ref.Methods3 and 4 (enclosed inconduitetc ,inoron a wall)	11 and12 (intrefoil)	(Flat and touching)
1	2	3	4	5	6	7
mm2	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m
1.5	31	31	27	27	27	27
2.5	19	19	16	16	16	16
