Split Concentric Halogen Free 400Hz Airport Cable

Airprot cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar

stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

VDE 0295

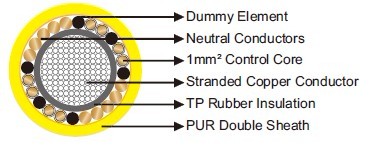

Conductor: Stranded copper conductor, Class 6 /Class 5 to VDE 0295/IEC 60228.

Insulation: TP rubber.

Control Core: 1mm² stranded copper conductor with XLPE insulation.

Cable Assembling: Helical concentric stranding of bare neutral conductors and control wire separated by

dummies.

Sheath: 2 layer PUR.

Rated Voltage Uo/U (Um) :600/1000V

Operating Temperatures :-40℃~+85℃

Minimum Bending Radius :static: 6×OD; dynamic: 8×OD

Flame Retardant :Yes

Abrasion Resistant :Yes

UV Resistant :Yes

Oil Resistant :Yes

Construction	Nominal Diameter Over Insulation	Nominal Diameter of Control Core	Nominal Diameter Under Sheath	Nominal Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	mm	mm	kg/km
1×70+10×2.5+8×1	13.8	2.1	17.8	22.2	1300
