 600/1000V XLPE Insulated, LSZH Sheathed Power Cables (Single Core)

FTX300 1RZ1-R (CU/XLPE/LSZH 600/1000V Single Core)

APPLICATION

Airprot cables is mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (SingleVerticalWireTest)	EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced FirePropagation(Vertically-mountedbundledwires&cabletest)	EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24; VDE0482-332-3; NBN C30-004 (cat.F2);NF C32-070- 2.2(C1); CEI 20-22/3-4; EN50266-2-4*;DIN VDE 0482-266- 2-4
Halogen Free	IEC60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI20-37/2-1;BS6425-1*
NoCorrosive GasEmission	IEC60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI20-37/2-2;BS6425-2*
MinimumSmokeEmission	IEC61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI20-37/3-1&2; EN50268-1&2*;BS 7622-1&2*
NoToxic Gases	NES02-713;NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

600/1000V

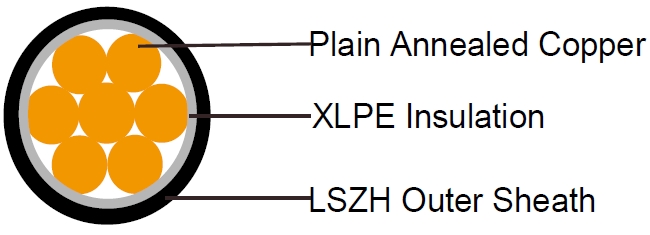

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

COLOUR CODE

Insulation Colour: Natural

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature Range During Operation: -30°C ~ 90°C

Temperature Range during Installation : -5°C ~ 50°C

Minimum Bending Radius: 6 x OD

Electrical PROPERTIES

Dielectric Test: 3500 Vr.m.s.x 5’(core/core)

Insulation Resistance: 500 MΩ x km ( at 20°C )

Short circuit Temperature: 250°C ( up to5secs)

CONSTRUCTION PARAMETERS

Cable Code	Conductor		Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
	No.of Core XCross Section	No./Nominal Diameterof Strands
	mm2	No./mm	mm	mm	kg/km
FTX300 1RZ1-R1G1.5	1x1.5	7/0.53	0.7	6	48
FTX300 1RZ1-R1G2.5	1x2.5	7/0.67	0.7	6.4	63
FTX300 1RZ1-R1G4	1x4	7/0.85	0.7	7.0	78
FTX300 1RZ1-R1G6	1x6	7/1.04	0.7	7.5	105
FTX300 1RZ1-R1G10	1x10	7/1.35	0.7	8.5	151
FTX300 1RZ1-R1G16	1x16	7/1.70	0.7	9.5	211
FTX300 1RZ1-R1G25	1x25	7/2.14	0.9	11.2	315
FTX300 1RZ1-R1G35	1x35	7/2.52	0.9	12.4	416
FTX300 1RZ1-R1G50	1x50	19/1.78	1.0	14	569
FTX300 1RZ1-R1G70	1x70	19/2.14	1.1	16	792
FTX300 1RZ1-R1G95	1x95	19/2.52	1.1	18	1068
FTX300 1RZ1-R1G120	1x120	37/2.03	1.2	20	1325
FTX300 1RZ1-R1G150	1x150	37/2.25	1.4	22	1627
FTX300 1RZ1-R1G185	1x185	37/2.52	1.6	24.4	2021
FTX300 1RZ1-R1G240	1x240	61/2.25	1.7	27.5	2617
FTX300 1RZ1-R1G300	1x300	61/2.52	1.8	30.3	3252
FTX300 1RZ1-R1G400	1x400	61/2.85	2.0	33.9	4131
FTX300 1RZ1-R1G500	1x500	61/3.20	2.2	37.6	5175
FTX300 1RZ1-R1G630	1x630	127/2.52	2.4	42.4	6631
FTX300 1RZ1-R1G800	1x800	127/2.85	2.6	47.3	8412
FTX300 1RZ1-R1G1000	1x1000	127/3.20	2.8	52.4	10530

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area	Reference Method4 (enclosed inconduitin thermally insulating walletc)		Reference Method3 (enclosed inconduitona wallorin trunkingetc)		Reference Method1 (clipped direct)		Reference Method11 (onaperforated cabletray, horizontal orvertical)		Reference Method 12 (freeair)
									Horizontalflat spaced	Verticalflat spaced	Trefoil
	2 cables, single- phase a.c.ord.c.	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.ord.c	3 or 4cables, 3-phasea.c.	2cables, single- phase a.c.or d.c. flat and touching	3 or 4cables, 3-phase a.c. flat and touching or trefoil	2cables, single- phase a.c.or d.c.orflat and touching	3 or 4cables, 3-phase a.c. flat and touching or trefoil	2cables, single- phase a.c.ord.c.or 3cablesthree phase	2 cables, single- phase a.c.ord.c.or 3 cables three phase	3cables, trefoil 3-phasea.c.
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	18	17	22	19	25	23	-	-	-	-	-
2.5	24	23	30	26	34	31	-	-	-	-	-
4	33	30	40	35	46	41	-	-	-	-	-
6	43	39	51	45	59	54	-	-	-	-	-
10	58	53	71	63	81	74	-	-	-	-	-
16	76	70	95	85	109	99	-	-	-	-	-
25	100	91	126	111	143	130	158	140	183	163	138
35	125	111	156	138	176	161	195	176	226	203	171
50	149	135	189	168	228	209	293	215	274	246	209
70	189	170	240	214	293	268	308	279	351	318	270
95	228	205	290	259	355	326	375	341	426	389	330
120	263	235	336	299	413	379	436	398	495	453	385
150	300	270	375	328	476	436	505	461	570	524	445
185	341	306	426	370	545	500	579	530	651	600	511
240	400	358	500	433	644	590	686	630	769	711	606
300	459	410	573	493	743	681	794	730	886	824	701
400	-	-	684	584	868	793	915	849	1065	994	820
500	-	-	783	666	990	904	1044	973	1228	1150	936
630	-	-	900	764	1130	1033	1191	1115	1423	1338	1069
800	-	-	-	-	1288	1179	1358	1275	1580	1485	1214
1000	-	-	-	-	1443	1323	1520	1436	1775	1671	1349

Voltage Drop (Per Amp Per Meter)

Sizeof conductor	2 cables d.c.	2cables,single-phasea.c.						3or 4cables,3-phase a.c.
		Ref. Methods3 and 4(enclosedin conduitetc, inoron a wall)			Ref. Methods1 and11(clipped director ontray stouching)			Ref. Methods3 and 4(enclosed inconduitetc, inoron a wall)			Ref. Methods1,11 and12 (intrefoil)			Ref. Methods1 and11 (Flat and touching)
1	2	3			4			5			6			7
mm2	mV/A/m	mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m
1.5	31	31			27			27			27			27
2.5	19	19			16			16			16			16
4	33	12			10			10			10			10
6	7.8	7.9			6.8			6.8			6.8			6.8
10	4.7	4.7			4.7			4			4			4
16	2.9	2.9			2.9			2.5			2.5			2.5
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
25	1.85	1.85	0.31	1.90	1.85	0.190	1.85	1.60	0.27	1.65	1.600	0.165	1.600	1.600	0.190	1.600
35	1.35	1.35	0.29	1.35	1.35	0.180	1.35	1.15	0.25	1.15	1.150	0.155	1.50	1.150	0.180	1.150
50	0.99	1.00	0.29	1.05	0.99	0.180	1.00	0.87	0.25	0.90	0.860	0.155	0.870	0.860	0.180	0.870
70	0.68	0.70	0.28	0.75	0.68	0.175	0.71	0.60	0.24	0.65	0.590	0.150	0.610	0.590	0.175	0.620
95	0.49	0.51	0.27	0.58	0.49	0.170	0.52	0.44	0.23	0.50	0.430	0.145	0.450	0.430	0.170	0.460
120	0.39	0.41	0.26	0.48	0.39	0.165	0.43	0.35	0.23	0.42	0.340	0.140	0.370	0.340	0.165	0.380
150	0.32	0.33	0.26	0.43	0.32	0.165	0.36	0.29	0.23	0.37	0.280	0.140	0.310	0.280	0.165	0.320
185	0.25	0.27	0.26	0.37	0.26	0.165	0.30	0.23	0.23	0.32	0.220	0.140	0.260	0.220	0.165	0.280
240	0.19	0.21	0.26	0.33	0.20	0.160	0.25	0.185	0.22	0.29	0.170	0.140	0.220	0.170	0.165	0.240
300	0.155	0.175	0.25	0.31	0.16	0.160	0.22	0.150	0.22	0.27	0.140	0.140	0.195	0.135	0.160	0.210
400	0.12	0.140	0.25	0.29	0.13	0.155	0.20	0.125	0.22	0.25	0.110	0.135	0.175	0.110	0.160	0.195
500	0.093	0.120	0.25	0.28	0.105	0.155	0.185	0.100	0.22	0.24	0.090	0.135	0.160	0.088	0.160	0.180
630	0.072	0.100	0.25	0.27	0.086	0.155	0.175	0.088	0.21	0.23	0.074	0.135	0.150	0.071	0.160	0.170
800	0.056	-	-	-	0.072	0.150	0.170	-	-	-	0.062	0.130	0.145	0.059	0.155	0.165
1000	0.045	-	-	-	0.063	0.150	0.165	-	-	-	0.055	0.130	0.140	0.050	0.155	0.165

Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
