  600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (Single Core)

FGD300 1RVMV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

FGD300 1RVMV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

APPLICATION

Airprot cables is mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

Basic design to BS 5467

FIRE PERFORMANCE

  FlameRetardance (SingleVerticalWireTest)** EN60332-1-2; IEC60332-1-2; BSEN 60332-1-2; VDE0482-332-1; NBN C30-004 (cat.F1);NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced FirePropagation(Vertically-mountedbundledwires &cabletest)** EN60332-3-24 (cat.C); IEC60332-3-24;BSEN60332-3-24;VDE0482-332-3;NBN C30-004 (cat.F2);NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the
PVC compound and the cable design.

VOLTAGE RATING

600/1000V

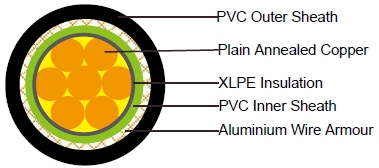

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Inner sheath : PVC Compound

Armouring : Aluminium Wire

Outer Sheath : Thermoplastic PVC compound .

COLOUR CODE

Insulation Colour: Natural

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature Range During Operation: -40°C ~ 70°C

Temperature Range during Installation : -5°C ~ 50°C

Minimum Bending Radius: 8 x OD

Electrical PROPERTIES

Dielectric Test:3500 Vr.m.s.x 5’(core/core)

Insulation Resistance:500 MΩ x km ( at 20°C )

Short circuit Temperature:250°C ( up to5secs)

CONSTRUCTION PARAMETERS

    Cable
Code		 Conductor   Diameter
Under
Armour		   Armour Wire Diameter   Nominal
Overall Diameter		     Approx. Weight
No. of CoreX CrossSection No./Nominal
Diameter
of
Strands
  mm2 No./mm mm mm mm kg/km
FFGD3001RVMV-R 1G70 1x70 19/2.14 15.4 1.25 21.5 960
FFGD3001RVMV-R 1G95 1x95 19/2.52 17.3 1.25 23.4 1240
FFGD3001RVMV-R 1G120 1x120 37/2.03 19.1 1.6 25.9 1650
FFGD3001RVMV-R 1G150 1x150 37/2.25 21.1 1.6 27.9 1970
FFGD3001RVMV-R 1G185 1x185 37/2.52 23.2 1.6 30.1 2390
FFGD3001RVMV-R 1G240 1x240 61/2.25 26.2 1.6 33.2 3040
FFGD3001RVMV-R 1G300 1x300 61/2.52 28.8 1.6 35.8 3790
FFGD3001RVMV-R 1G400 1x400 61/2.85 32.7 2.0 40.9 4790
FFGD3001RVMV-R 1G500 1x500 61/3.20 36.2 2.0 44.6 5880
FFGD3001RVMV-R 1G630 1x630 127/2.52 40.6 2.0 49.2 7400
FFGD3001RVMV-R 1G800 1x800 127/2.85 45.7 2.5 55.7 9500
FFGD3001RVMV-R 1G1000 1x1000 127/3.20 50.6 2.5 61.0 11750

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

 Conductor
cross- sectional area 		 Reference Method1(clipped direct)  Reference
Method11(ona
perforated horizontalcabletrayor
Reference Method 13[freeair])		  Reference
Method 12(free air) 		 Insingle-
wayducts 		 Laiddirectin
ground
      2 cables, single- phase a.c.ord.c.       3 or 4cables, 3-phasea.c.     2 cables, single- phase a.c.ord.c.       3 or 4cables, 3-phasea.c.       3cables 3-phase a.c.trefoiltouching     2 cables, single- phase a.c.ord.c.       3 or 4cables, 3-phasea.c.     2 cables, single- phase a.c.ord.c.       3 or 4cables, 3-phasea.c.
1 2 3 4 5 6 7 8 9 10
mm2 A A A A A A A A A
70 303 277 322 293 285 310 280 340 290
95 367 333 389 352 346 365 330 405 345
120 425 383 449 405 402 410 370 460 389
150 488 437 516 462 463 445 405 510 435
185 557 496 587 524 529 485 440 580 490
240 656 579 689 612 625 550 500 670 560
300 755 662 792 700 720 610 550 750 630
400 853 717 899 767 815 640 580 830 700
500 962 791 1016 851 918 690 620 910 770
630 1082 861 1146 935 1027 750 670 1000 840
800 1170 904 1246 987 1119 828 735 1117 931
1000 1261 961 1345 1055 1214 919 811 1254 1038

Voltage Drop (Per Amp Per Meter)

    Conductor cross-sectionalarea       2 cablesd.c.   2cables single-phasea.c.   3 or 4 cables three-phase a.c. 2 cables
single
phasea.c.		 3 or 4 cables,3-phase a.c.touching
  Reference Method 1 & 11 (touching) Reference Method1, 11 & 12 (intrefoiltouching)   Reference Method 1 &11(Flattouching)   In ducts   In ground   In ducts   In ground
1 2 3 4 5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    r x z r x z r x z
70 0.67 0.68 0.20 0.71 0.59 0.17 0.62 0.6 0.25 0.65 0.80 0.70 0.70 0.61
95 0.49 0.51 0.195 0.55 0.44 0.17 0.47 0.46 0.24 0.52 0.65 0.53 0.56 0.46
120 0.39 0.41 0.190 0.45 0.35 0.165 0.39 0.38 0.24 0.44 0.55 0.43 0.48 0.37
150 0.31 0.33 0.185 0.38 0.29 0.160 0.33 0.31 0.23 0.39 0.50 0.37 0.43 0.32
185 0.25 0.27 0.185 0.33 0.23 0.160 0.28 0.26 0.23 0.34 0.45 0.31 0.39 0.27
240 0.195 0.21 0.180 0.28 0.18 0.155 0.24 0.21 0.22 0.30 0.40 0.26 0.35 0.23
300 0.155 0.17 0.175 0.25 0.145 0.150 0.21 0.17 0.22 0.28 0.37 0.24 0.32 0.21
400 0.115 0.145 0.170 0.22 0.125 0.150 0.195 0.160 0.21 0.27 0.35 0.21 0.30 0.19
500 0.093 0.125 0.170 0.21 0.105 0.145 0.180 0.145 0.20 0.25 0.33 0.20 0.28 0.18
630 0.073 0.105 0.165 0.195 0.092 0.145 0.170 0.135 0.195 0.24 0.30 0.19 0.26 0.17
800 0.056 0.090 0.160 0.190 0.086 0.140 0.165 0.130 0.180 0.23 0.28 0.18 0.24 0.16
1000 0.045 0.092 0.155 0.180 0.080 0.135 0.155 0.125 0.170 0.21 0.26 0.17 0.22 0.15
Note :
r = conductor resistance at operating temperature
x = reactance
z = impedance
