Automotive Cable
AESSXF/ALS
Application:
This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistant with
irradiated PE. Suitable for the consideration of the flexibility and shielding characteristic. Shielding wire is consist
of drain wire included AI-Mylar tape around core.

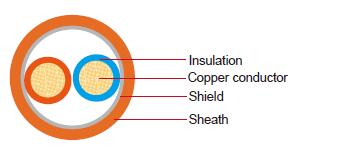

Construction:
Conductor: Annealed stranded copper
Insulation: XLPE Shield: AI-Mylar Tape
Sheath: PVC
Standard Compliance:
JASO D608; HMC ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +120 °C
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
|
1/0.3 |
19/0.16 |
0.8 |
49.4 |
0.3 |
3.4 |
3.6 |
17 |
|
2/0.3 |
19/0.16 |
0.8 |
49.4 |
0.3 |
3.9 |
4.1 |
24 |
|
3/0.3 |
19/0.16 |
0.8 |
49.4 |
0.3 |
4.1 |
4.3 |
29 |
|
4/0.3 |
19/0.16 |
0.8 |
49.4 |
0.3 |
4.4 |
4.7 |
35 |
|
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
|
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
|
1/0.5 |
19/0.19 |
1.0 |
35.03 |
0.3 |
3.6 |
3.8 |
20 |
|
2/0.5 |
19/0.19 |
1.0 |
35.03 |
0.3 |
4.3 |
4.5 |
28 |
|
3/0.5 |
19/0.19 |
1.0 |
35.03 |
0.3 |
4.7 |
4.9 |
38 |
|
4/0.5 |
19/0.19 |
1.0 |
35.03 |
0.3 |
5.1 |
5.3 |
46 |
|
1/0.75 |
19/0.23 |
1.2 |
23.88 |
0.3 |
3.8 |
4.0 |
23 |
|
2/0.75 |
19/0.23 |
1.2 |
23.88 |
0.3 |
4.9 |
5.1 |
38 |
|
3/0.75 |
19/0.23 |
1.2 |
23.88 |
0.3 |
5.1 |
5.3 |
49 |
|
4/0.75 |
19/0.23 |
1.2 |
23.88 |
0.3 |
5.6 |
5.8 |
60 |
|
1/1.25 |
37/0.21 |
1.5 |
15.2 |
0.3 |
4.1 |
4.3 |
28 |
|
2/1.25 |
37/0.21 |
1.5 |
15.2 |
0.3 |
5.5 |
5.7 |
48 |
|
3/1.25 |
37/0.21 |
1.5 |
15.2 |
0.3 |
5.8 |
6.0 |
64 |
|
4/1.25 |
37/0.21 |
1.5 |
15.2 |
0.3 |
6.3 |
6.5 |
80 |
