Automotive Cable
AEX/AVX
Application
Automotive XLPE insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

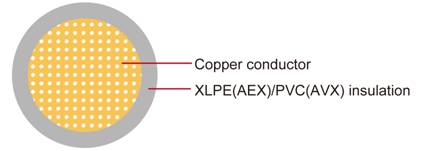

Construction:
Conductor:Cu-ETP1 according to JIS C3102
Insulation: XLPE (AEX)
Crosslinked PVC (AVX)
Standard Compliance:
JASO D 608-92
Technical Parameters:
Operating temperature:–40 °C to +120 °C (AEX)
Operating temperature:–40 °C to +100 °C (AVX)
| AEX/AVX | |||||||
|---|---|---|---|---|---|---|---|
| Conductor | Insulation | Cable | |||||
| Nominal cross- section |
No. and Dia. of Wires. | Diameter Max. | Electrical resistance at 20℃ Max. | Thickness Wall Nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km |
| 1 x0.50 | 7/0.32 | 1.00 | 32.70 | 0.50 | 2.00 | 2.20 | 8 |
| 1 x0.85 | 11/0.32 | 1.20 | 20.80 | 0.50 | 2.20 | 2.40 | 11 |
| 1 x1.25 | 16/0.32 | 1.50 | 14.30 | 0.60 | 2.70 | 2.90 | 16 |
| 1 x2.00 | 26/0.32 | 1.90 | 8.80 | 0.60 | 3.10 | 3.40 | 25 |
| 1 x3.00 | 41/0.32 | 2.40 | 5.60 | 0.70 | 3.80 | 4.10 | 38 |
| 1 x5.00 | 65/0.32 | 3.00 | 3.50 | 0.80 | 4.60 | 4.90 | 59 |
| 1 x8.00 | 50/0.45 | 3.70 | 2.30 | 0.80 | 5.30 | 5.60 | 86 |
| 1 x15.00 | 84/0.45 | 4.80 | 1.40 | 1.10 | 7.00 | 7.40 | 145 |
| 1 x0.50f | 20/0.18 | 1.00 | 36.70 | 0.50 | 2.00 | 2.20 | 8 |
| 1 x0.75f | 30/0.18 | 1.20 | 24.40 | 0.50 | 2.20 | 2.40 | 10 |
| 1 x 1.25f | 50/0.18 | 1.50 | 14.70 | 0.60 | 2.70 | 2.90 | 16 |
