Automotive Cable
AHFX-BS
Application:
This Fluororubber insulated single-core cable is used for HEV automobiles.

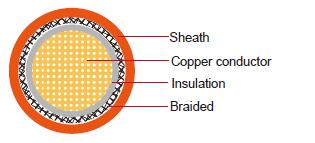

Construction:
Conductor:
Tin plated copper
Insulation:
Fluororubber
Braided:
Shield tin plated copper
Sheath:
Halogen free Polyolefine
Standard Compliance:
KIS-ES-1121
Technical Parameters:
Operating temperature: –40 °C to +200°C
Rated Voltage: 600V
|
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall max. |
Thickness Wall min. |
Shield Rate |
Overall Diameter max. |
Overall Diameter min. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
1x3 |
65/0.26 |
2.4 |
5.65 |
4.05 |
3.55 |
90 |
5.6 |
5.3 |
1x5 |
65/0.32 |
3.0 |
3.72 |
4.9 |
4.3 |
90 |
7.3 |
6.5 |
1x8 |
154/0.26 |
4.0 |
2.43 |
5.9 |
5.3 |
90 |
8.3 |
7.5 |
1x15 |
171/0.32 |
5.3 |
1.44 |
7.8 |
7.2 |
90 |
10.75 |
9.85 |
1x20 |
247/0.32 |
6.5 |
1.00 |
9.0 |
8.4 |
90 |
11.95 |
11.05 |
1x25 |
323/0.32 |
7.4 |
0.76 |
10.6 |
9.8 |
90 |
13.5 |
12.5 |
1x30 |
361/0.32 |
7.8 |
0.68 |
11.0 |
10.2 |
90 |
13.9 |
12.9 |
1x40 |
494/0.32 |
9.1 |
0.52 |
12.3 |
11.5 |
90 |
16.25 |
15.15 |
1x50 |
608/0.32 |
10.1 |
0.42 |
13.75 |
12.85 |
90 |
17.7 |
16.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
