Automotive Cable
AHFX
Application:
This Fluoroelastomer insulated single-core cable is used in Fuel Pump and Transmission for automobiles,
Superior oil resistance, Suitable for the consideration of the flexibility and thermal resistance.

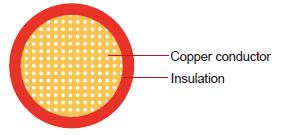

Construction:
Conductor:
Tin coated annealed stranded copper
Insulation:
Fluoroelastomer
Standard Compliance:
KIS-ES-8093
Technical Parameters:
Operating temperature: –40 °C to +200°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.50 |
20/0.18 |
0.9 |
38.2 |
0.4 |
1.55 |
1.85 |
7.8 |
1x0.75 |
19/0.23 |
1.2 |
24.7 |
0.4 |
1.75 |
2.05 |
10.8 |
1x1.25 |
50/0.18 |
1.4 |
15.9 |
0.4 |
2.15 |
2.45 |
16.7 |
1x2.00 |
37/0.26 |
1.8 |
10.5 |
0.4 |
2.45 |
2.75 |
23.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
