Automotive Cable
APEX-BS
Application:
This XLPE insulated cable is used in low voltage signal circuits in automobiles. Superior heat resistance with
irradiated PE. Suitable for the consideration of the shielding characteristic.

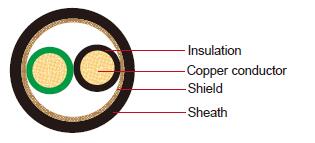

Construction:
Conductor:
Annealed stranded copper
Insulation:
XLPE
Shield:
Tin coated annealed copper
Sheath:
PVC
Standard Compliance:
JASO D611; ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +120 °C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.5 |
20/0.18 |
0.93 |
0.037 |
0.6 |
3.7 |
3.9 |
21 |
0.85 |
34/0.18 |
1.21 |
0.022 |
0.6 |
4.2 |
4.4 |
27 |
1.25 |
50/0.18 |
1.50 |
0.015 |
0.6 |
4.5 |
4.7 |
31 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
