Automotive Cable
AVSSXFT
Application:
This Cross-linked Polyvinyl Chloride insulated cable is used in low voltage signal circuits in automobiles. Superior
heat resistant with irradiated PVC.

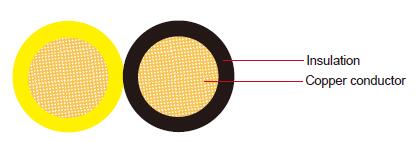

Construction:
Conductor:
Annealed stranded copper
Insulation:
Cross-linked Polyvinyl Chloride
Standard Compliance:
JASO D611; ES SPEC
Technical Parameters:
Operating temperature: –40 °C to +100 °C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.3 |
19/0.16 |
0.8 |
49.4 |
0.3 |
2.8 |
3.0 |
10.3 |
0.5 |
19/0.19 |
1.0 |
35.0 |
0.3 |
3.2 |
3.4 |
14.0 |
0.85 |
37/0.17 |
1.2 |
22.0 |
0.3 |
3.6 |
3.8 |
20.4 |
1.25 |
37/0.21 |
1.5 |
14.6 |
0.3 |
4.2 |
4.4 |
29.5 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
