Automotive Cable
AVXSF
Application:
This XLPVC insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles)

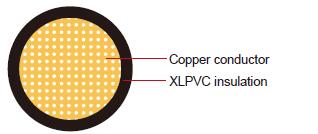

Construction:
Conductor:
Annealed standed copper
Insulation:
Cross-linked Polyvinyl Chloride(XLPVC)
Standard Compliance:
HKMC ES 91110-05
Technical Parameters:
Operating temperature:–45 °C to +200°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x10.0 |
399/0.18 |
4.2 |
1.85 |
0.9 |
6.0 |
6.2 |
110 |
1x15.0 |
588/0.18 |
5.0 |
1.32 |
1.1 |
7.2 |
7.5 |
160 |
1x20.0 |
779/0.18 |
6.3 |
0.99 |
1.2 |
8.7 |
9.0 |
220 |
1x25.0 |
1007/0.18 |
7.1 |
0.76 |
1.3 |
9.7 |
10.0 |
280 |
1x30.0 |
1159/0.18 |
8.0 |
0.69 |
1.3 |
10.6 |
10.9 |
335 |
1x40.0 |
1554/0.18 |
9.2 |
0.50 |
1.4 |
12.0 |
12.4 |
445 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
