Automotive Cable
CIVUS
Application:
This PVC insulated single-core cable is used in low voltage circuits in automobiles.

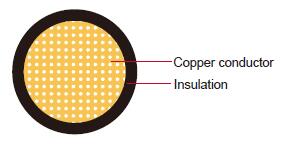

Construction:
Conductor:
Annealed standed copper or copper alloy
Insulation:
Polyvinyl Chloride(PVC)
Standard Compliance:
JASO D611
Technical Parameters:
Operating temperature:–40 °C to +85°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.13 |
7/SB |
0.45 |
210 |
0.20 |
0.85 |
0.95 |
2.0 |
1x0.22 |
7/SB |
0.55 |
84.4 |
0.20 |
0.95 |
1.05 |
3.0 |
1x0.35 |
7/SB |
0.70 |
54.4 |
0.20 |
1.10 |
1.20 |
3.9 |
1x0.5 |
7/SB |
0.85 |
37.1 |
0.20 |
1.25 |
1.40 |
5.7 |
1x0.75 |
11/SB |
1.00 |
24.7 |
0.20 |
1.40 |
1.60 |
7.6 |
1x1.25 |
16/SB |
1.40 |
14.9 |
0.20 |
1.80 |
2.00 |
12.4 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
