Automotive Cable
Germany Standard
Single-core cable
FL2G
Application:
This silicon rubber insulated single core cable is used in battery lead-wire for automobiles.

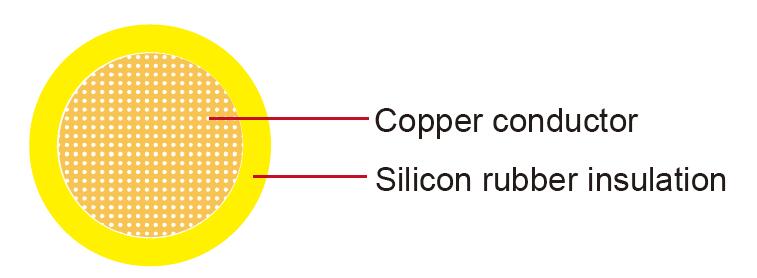

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation:
Silicon rubber Standard:ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +200°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal cross- section |
No. and Dia. of Wires |
Diameter of Conductor- max. |
Electrical resistance at 20°C max. |
Nominal thickness |
Overall Diameter Min. |
Overall Diameter Max |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
(mm) |
(mm) |
mm |
kg/km |
0.5 |
16/0.21 |
1.1 |
37.1 |
0.48 |
2 |
2.3 |
8 |
0.75 |
24/0.21 |
1.3 |
24.7 |
0.48 |
2.2 |
2.5 |
10.6 |
1 |
32/0.21 |
1.5 |
18.5 |
0.48 |
2.4 |
2.7 |
13.5 |
1.5 |
30/0.26 |
1.8 |
12.7 |
0.48 |
2.7 |
3 |
17.9 |
2.5 |
50/0.26 |
2.2 |
7.6 |
0.56 |
3.3 |
3.6 |
29.5 |
4 |
56/0.31 |
2.8 |
4.71 |
0.64 |
4 |
4.4 |
46.7 |
6 |
84/0.31 |
3.4 |
3.14 |
0.64 |
4.6 |
5 |
66 |
10 |
80/0.41 |
4.5 |
1.82 |
0.8 |
5.9 |
6.5 |
113 |
16 |
126/0.41 |
6.3 |
1.16 |
0.8 |
7.7 |
8.3 |
173 |
25 |
196/0.41 |
7.8 |
0.743 |
1.04 |
9 |
10 |
266 |
35 |
276/0.41 |
9 |
0.527 |
1.04 |
10.4 |
11 |
361 |
50 |
396/0.41 |
10.5 |
0.368 |
1.25 |
12.4 |
13.5 |
526 |
70 |
360/0.51 |
12.5 |
0.259 |
1.25 |
14.2 |
15.5 |
750 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
