Automotive Cable
Germany Standard
Single-core cable
FL2X
Application:
This PVC insulated single-core cable is used for low voltage electric installations in vehicles.

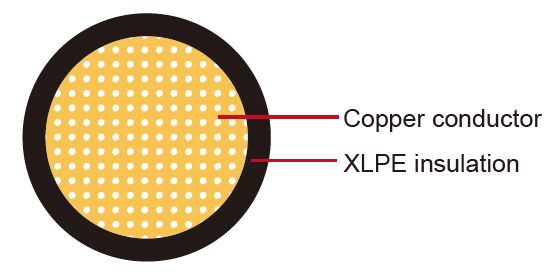

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
XLPE
Standard:
ISO 6722 Class C
Technical Parameters:
Operating temperature:–40°C to +125°C
|
CONDUCTOR CONSTRUCTION |
INSULATION |
CABLE |
||||
|---|---|---|---|---|---|---|---|
NOMINAL CROSS- SECTION |
NO. AND DIA. OF WIRES |
DIAMETER |
ELECTRICAL |
NOMINAL THICKNESS |
OVERALL DIAMETER MIN. |
OVERALL DIAMETER MAX. |
WEIGHT APPROX. |
MM2 |
NO./MM |
MM |
MΩ/M |
MM |
MM |
MM |
KG/KM |
1x0.50 |
16/0.21 |
1.10 |
37.1 |
0.6 |
2.1 |
2.3 |
8 |
1x0.75 |
24/0.21 |
1.30 |
24.7 |
0.6 |
2.35 |
2.5 |
11 |
1x1.00 |
32/0.21 |
1.50 |
18.5 |
0.6 |
2.55 |
2.7 |
14 |
1x1.50 |
30/0.26 |
1.80 |
12.7 |
0.6 |
2.85 |
3.0 |
19 |
1x2.00 |
40/0.26 |
2.00 |
9.42 |
0.6 |
3.15 |
3.3 |
24 |
1x2.50 |
50/0.26 |
2.20 |
7.6 |
0.7 |
3.45 |
3.6 |
30 |
1x3.00 |
60/0.26 |
2.40 |
6.15 |
0.7 |
3.95 |
4.1 |
38 |
1x4.00 |
56/0.31 |
2.80 |
4.71 |
0.8 |
4.20 |
4.4 |
48 |
1x6.00 |
84/0.31 |
3.40 |
3.14 |
0.8 |
4.80 |
5.0 |
68 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
