Automotive Cable
Germany Standard
FL4G11Y
Application
Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the
engine compartment.

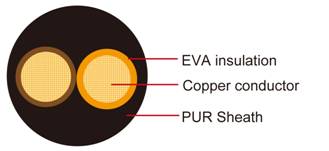

Construction:
Conductor:
cu-ETP1 tinned according to DIN EN 13602
Insulation:
Ethylene vinyl acetate (EVA)
Sheath:
Polyurethane(PUR)
Standard Compliance:
ISO 6722 Calss C
Technical Parameters:
Operating temperature:–40 °C to +125 °C
|
Conductor |
Insulation |
Cable |
||||||
|---|---|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
mm |
kg/km |
2x0.50 |
16/0.21 |
1.00 |
40.10 |
0.60 |
2.20 |
0.85 |
5.90 |
6.30 |
44 |
2x0.75 |
40/0.16 |
1.10 |
27.10 |
0.60 |
2.30 |
0.90 |
6.40 |
6.80 |
49 |
2x1.50 |
30/0.26 |
1.70 |
13.70 |
0.60 |
2.90 |
0.90 |
7.60 |
8.00 |
66 |
3x0.50 |
16/0.21 |
1.00 |
40.10 |
0.60 |
2.20 |
0.80 |
6.00 |
6.40 |
51 |
3x1.50 |
30/0.26 |
1.70 |
13.70 |
0.70 |
2.90 |
1.10 |
8.10 |
8.70 |
107 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request
