Automotive Cable
Germany Standard
FL6Y2G
Application
Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the
engine compartment.

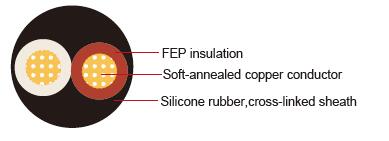

Construction:
Conductor:
Cu-ETP1 or bare according to DIN EN 13602
Insulation:
Fluorinated ethylene propylene(FEP) insulation
Sheath:
Siliconne rubber,cross-linked according to ISO 14572 class F
Standard:
ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +210°C
|
Conductor |
Insulation |
Cable |
|||||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical resistance at 20°C max. |
Thickness Wall nom. | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | (mm) | mΩ/m | (mm) | (mm) | mm | mm | kg/km |
| 2x0.35 | 12/0.21 | 0.8 | 52 | 0.4 | 0.53 | 4.6 | 5 | 32 |
| 2x0.25 | 24/0.16 | 0.7 | 86.5 | 0.4 | 0.53 | 3.4 | 3.8 | 24 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
